Amphenol ICC (FCI) 10056845-110LF

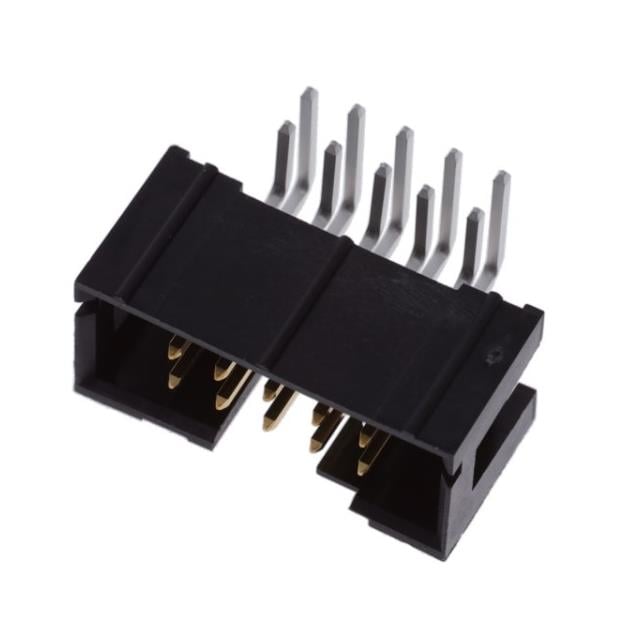

Image shown is a representation only
Manufacturer
Manufacturer No
10056845-110LF
Packaging
Tube
Description
CONN HEADER R/A 10POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Quickie™
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.362" (9.20mm)
Base Product Number
10056845
Insulation Material
Thermoplastic
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.079" (2.00mm)
Contact Finish - Mating
Gold, GXT™
Contact Length - Mating
0.236" (6.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Quickie™ |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.362" (9.20mm) |
| Base Product Number | 10056845 |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.079" (2.00mm) |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Length - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
