Step1: Product

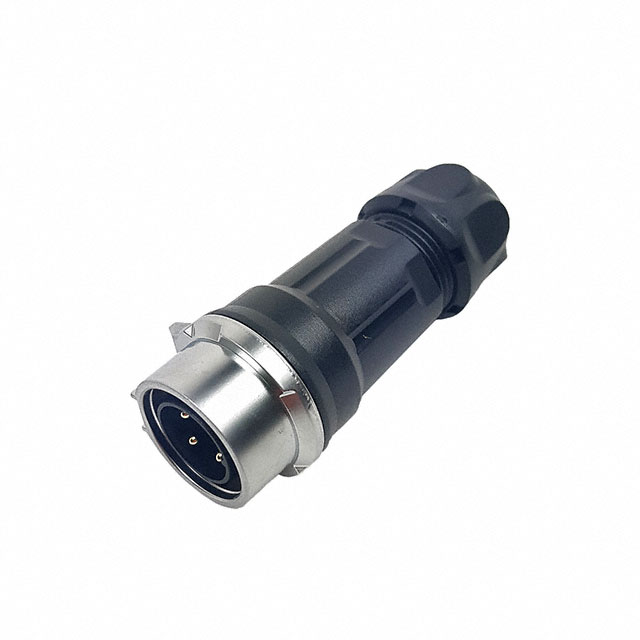

Amphenol ICC (Commercial Products) MRDBG04M17000
Image shown is a representation only
Manufacturer
Manufacturer No
MRDBG04M17000
Packaging
Box
Description
CONN RCPT MALE 4P GOLD SLDR CUP
Detailed Description
4 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
BrightConnX™ MRD
Features
Backshell
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Industrial
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Lock
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
500VAC
Insert Material
Polybutylene Terephthalate (PBT)
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
MRD
Number of Positions
4
Current Rating (Amps)
10A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | BrightConnX™ MRD |
| Features | Backshell |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 500VAC |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | MRD |
| Number of Positions | 4 |
| Current Rating (Amps) | 10A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
