Step1: Product
Amphenol ICC (Commercial Products) HSDNCRPPCB8A

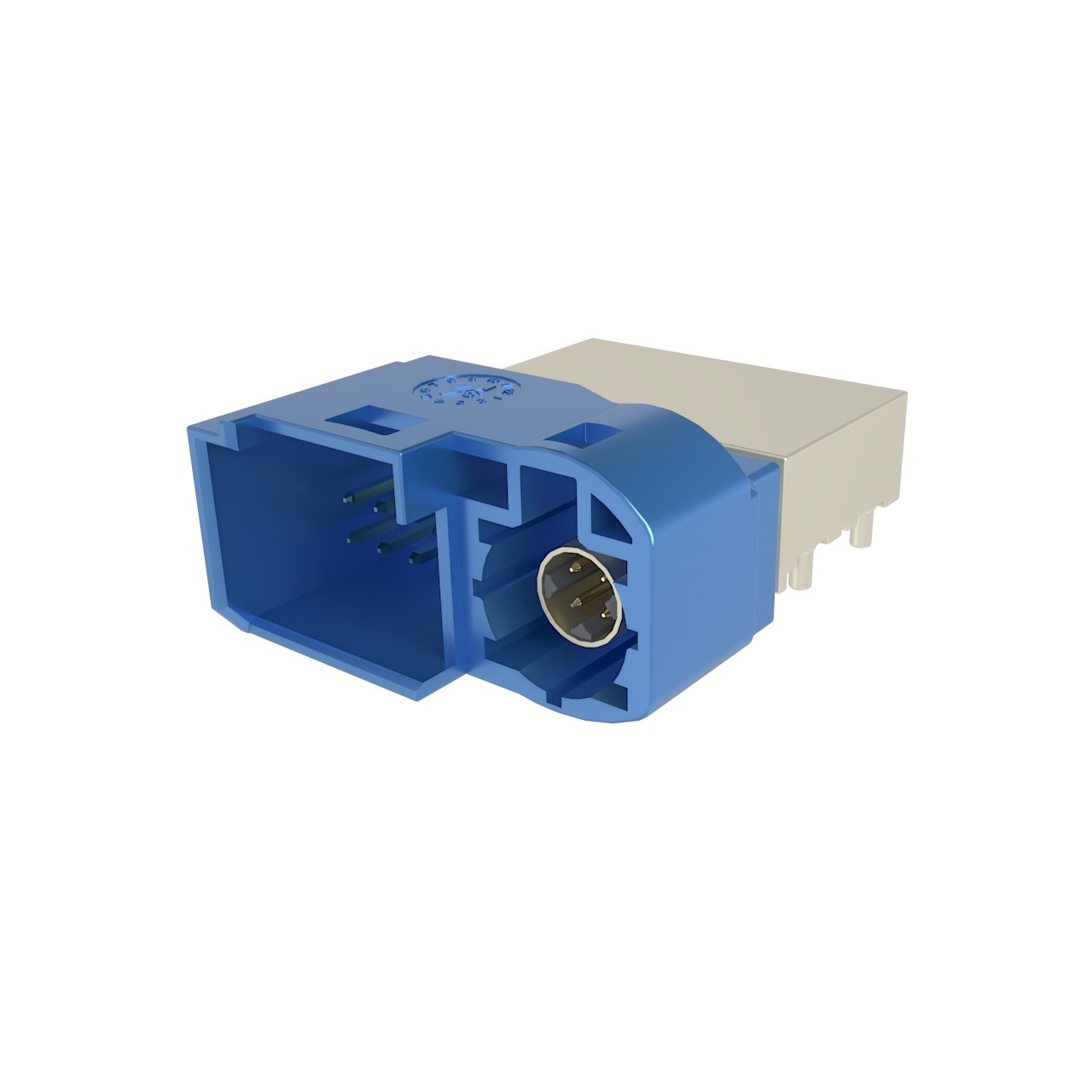

Image shown is a representation only
Manufacturer
Manufacturer No
HSDNCRPPCB8A
Packaging
Tape & Reel (TR)
Description
CONN HSD+8 R/A PLUG C CODE
Detailed Description
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
Datasheet
Mfr
Amphenol ICC (Commercial Products)
Features
Code C
Impedance
100 Ohms
Packaging
Tape & Reel (TR)
Body Finish
Tin
Body Material
Zinc Alloy
Housing Color
Blue
Mating Cycles
25
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Latch Lock
Connector Style
HSD®, Fakra, Quadraxial
Number of Ports
2
Shield Termination
Solder
Base Product Number
HSDNCRPP
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Features | Code C |
| Impedance | 100 Ohms |
| Packaging | Tape & Reel (TR) |
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Housing Color | Blue |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Latch Lock |
| Connector Style | HSD®, Fakra, Quadraxial |
| Number of Ports | 2 |
| Shield Termination | Solder |
| Base Product Number | HSDNCRPP |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
