Step1: Product

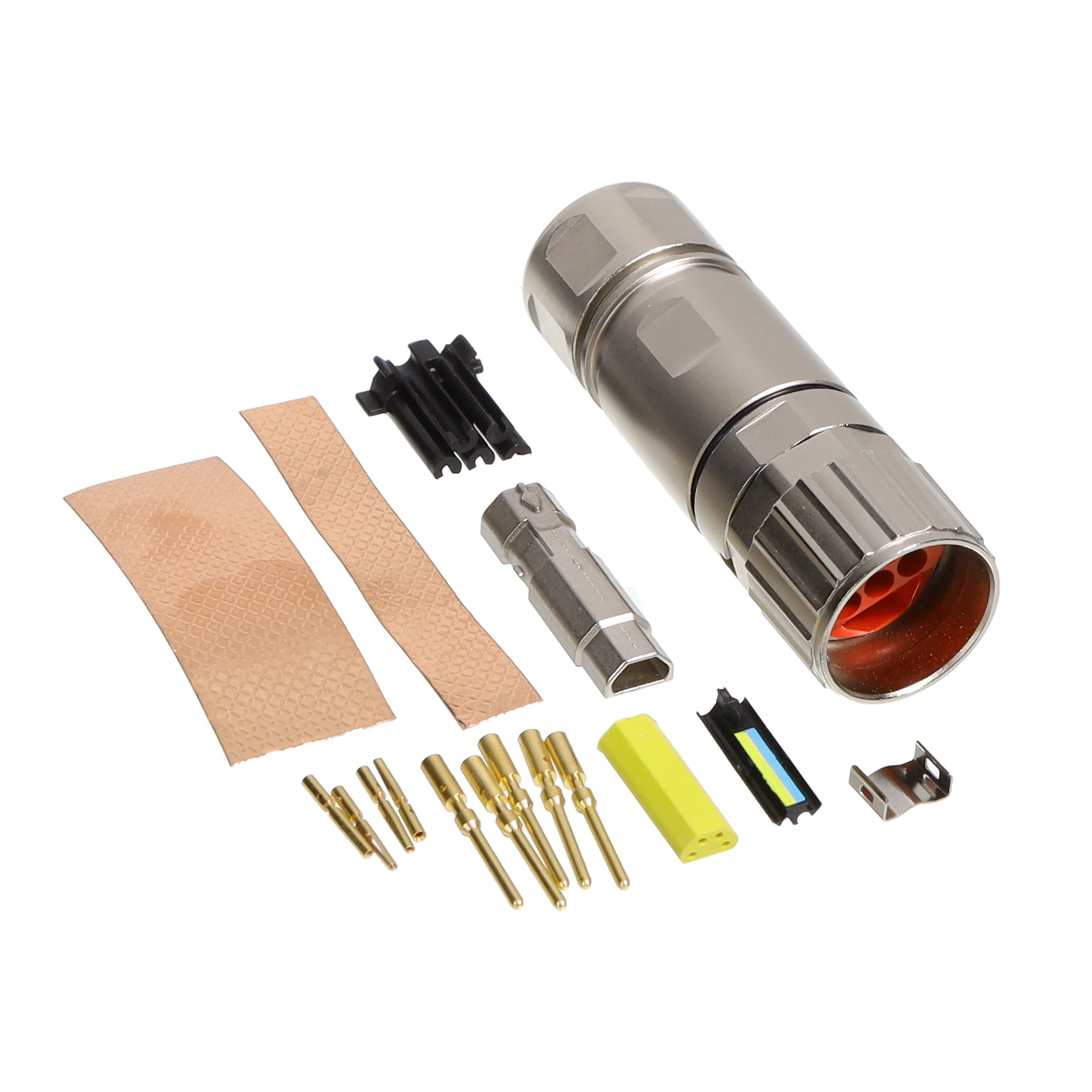

Amphenol CONEC 57-20003
Image shown is a representation only
Manufacturer
Manufacturer No
57-20003
Packaging
Bag
Description
HYBRID B17 FIELD ATTACHABLE CON
Detailed Description
9 (4 + 5 Power) Position Circular Connector Plug, Female Sockets and Male Pins Crimp
DataSheet
Mfr
Amphenol CONEC
Color
Silver
Series
57
Features
Backshell, Coupling Nut
Packaging
Bag
Shielding
Shielded
Orientation
Keyed
Part Status
Active
Termination
Crimp
Shell Finish
Nickel
Cable Opening
0.413" ~ 0.453" (10.50mm ~ 11.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets and Male Pins
Fastening Type
Bayonet Lock
Shell Material
Copper Zinc
Voltage Rating
50VAC/DC, 600VAC/DC
Insert Material
Polyamide (PA), Nylon
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Number of Positions
9 (4 + 5 Power)
Current Rating (Amps)
4A, 14A
Operating Temperature
-20°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Copper Zinc, Nickel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol CONEC |
| Color | Silver |
| Series | 57 |
| Features | Backshell, Coupling Nut |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Crimp |
| Shell Finish | Nickel |
| Cable Opening | 0.413" ~ 0.453" (10.50mm ~ 11.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets and Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Copper Zinc |
| Voltage Rating | 50VAC/DC, 600VAC/DC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 9 (4 + 5 Power) |
| Current Rating (Amps) | 4A, 14A |
| Operating Temperature | -20°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Copper Zinc, Nickel |
| Material Flammability Rating | UL94 V-0 |
