Step1: Product

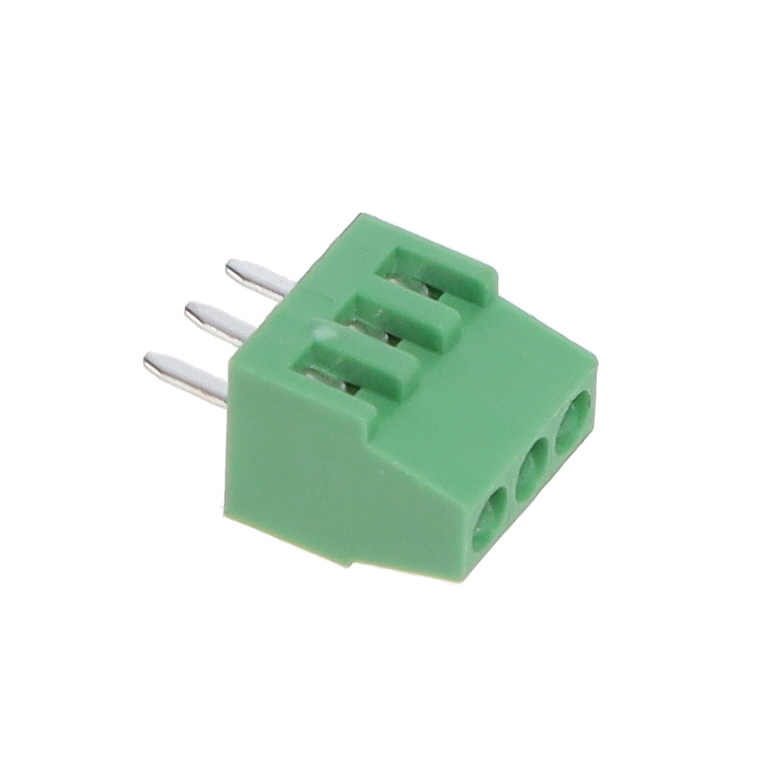

Amphenol Anytek VN03A1500000G
Image shown is a representation only
Manufacturer
Manufacturer No
VN03A1500000G
Quantity
205
Availability
In Stock
Packaging
Bulk
Description
TERM BLK 3P SIDE ENT 2.54MM PCB
Detailed Description
3 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole
DataSheet
Color
Green
Pitch
0.100" (2.54mm)
Series
VN
Current
6 A
Voltage
150 V
Packaging
Bulk
Wire Gauge
18-30 AWG
Part Status
Active
Manufacturer
Amphenol Anytek
Screw Thread
M1.6
Mounting Type
Through Hole
Torque - Screw
0.15 Nm (1.3 Lb-In)
Housing Material
Thermoplastic
Number of Levels
1
Wire Termination
Screw - Rising Cage Clamp
Mating Orientation
Horizontal with Board
Base Product Number
VN
Positions Per Level
3
Operating Temperature
-40°C ~ 115°C
Clamp Material - Plating
Brass - Nickel Plated
Screw Material - Plating
Steel - Zinc Plated
| Attribute | Value |
|---|---|
| Color | Green |
| Pitch | 0.100" (2.54mm) |
| Series | VN |
| Current | 6 A |
| Voltage | 150 V |
| Packaging | Bulk |
| Wire Gauge | 18-30 AWG |
| Part Status | Active |
| Manufacturer | Amphenol Anytek |
| Screw Thread | M1.6 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.15 Nm (1.3 Lb-In) |
| Housing Material | Thermoplastic |
| Number of Levels | 1 |
| Wire Termination | Screw - Rising Cage Clamp |
| Mating Orientation | Horizontal with Board |
| Base Product Number | VN |
| Positions Per Level | 3 |
| Operating Temperature | -40°C ~ 115°C |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Steel - Zinc Plated |
