Step1: Product

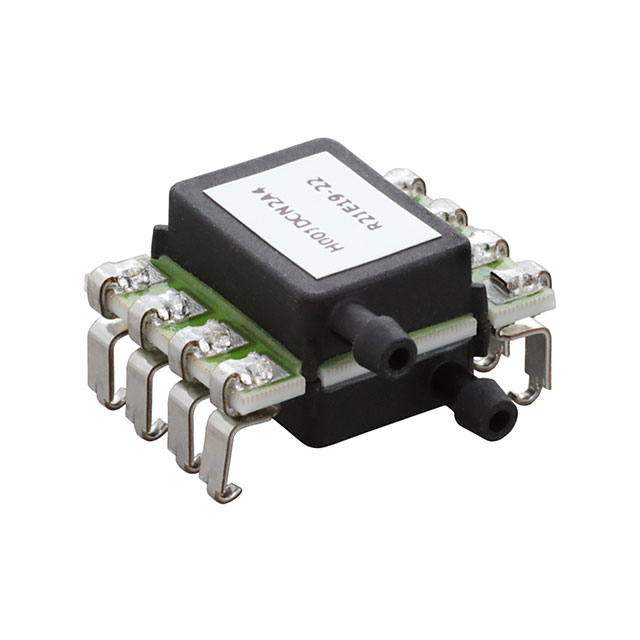

Amphenol All Sensors Corporation ELVH-001D-HRRJ-C-N2A4
Image shown is a representation only
Manufacturer
Manufacturer No
ELVH-001D-HRRJ-C-N2A4
Package
8-SMD, J-Lead, Dual Ports, Same Side
Packaging
Tray
Description
SENSOR 1.02PSID 0.06" 14BIT
Detailed Description
Pressure Sensor -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 14 b 8-SMD, J-Lead, Dual Ports, Same Side
Datasheet
Output
14 b
Series
ELV
Accuracy
±0.25%
Features
Temperature Compensated
Packaging
Tray
Port Size
Male - 0.06" (1.6mm) Tube, Dual
Port Style
Barbed
Output Type
I2C
Manufacturer
Amphenol All Sensors Corporation
Mounting Type
Surface Mount
Pressure Type
Differential
Package / Case
8-SMD, J-Lead, Dual Ports, Same Side
Maximum Pressure
14.94PSI (103kPa)
Voltage - Supply
3.3V
Termination Style
J Lead
Operating Pressure
-1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa)
Base Product Number
ELVH-001D
Operating Temperature
0°C ~ 50°C
| Attribute | Value |
|---|---|
| Output | 14 b |
| Series | ELV |
| Accuracy | ±0.25% |
| Features | Temperature Compensated |
| Packaging | Tray |
| Port Size | Male - 0.06" (1.6mm) Tube, Dual |
| Port Style | Barbed |
| Output Type | I2C |
| Manufacturer | Amphenol All Sensors Corporation |
| Mounting Type | Surface Mount |
| Pressure Type | Differential |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Maximum Pressure | 14.94PSI (103kPa) |
| Voltage - Supply | 3.3V |
| Termination Style | J Lead |
| Operating Pressure | -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) |
| Base Product Number | ELVH-001D |
| Operating Temperature | 0°C ~ 50°C |
