Step1: Product

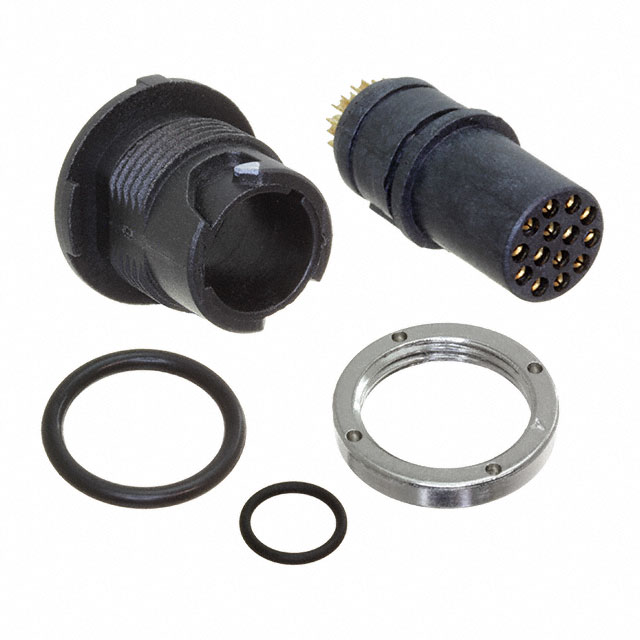

Amphenol Alden Products Company 320483
Image shown is a representation only
Manufacturer
Manufacturer No
320483
Packaging
Bulk
Description
CONN RCPT FMALE 14P GOLD SLD CUP
Detailed Description
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Amphenol Alden Products Company
Color
Black
Series
PL-500SM-N
Features
Board Guide
Packaging
Bulk
Shielding
Unshielded
Orientation
1
Part Status
Active
Termination
Solder Cup
Applications
Medical
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA12), Nylon 12
Voltage Rating
300V
Insert Material
Liquid Crystal Polymer (LCP)
Contact Material
Phosphor Bronze
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
14
Current Rating (Amps)
2.5A
Operating Temperature
-20°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA12), Nylon 12
Material Flammability Rating
UL94 HB, UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Alden Products Company |
| Color | Black |
| Series | PL-500SM-N |
| Features | Board Guide |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | 1 |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Medical |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA12), Nylon 12 |
| Voltage Rating | 300V |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 14 |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -20°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA12), Nylon 12 |
| Material Flammability Rating | UL94 HB, UL94 V-0 |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
