Amphenol Aerospace Operations RVPX-P16SM1

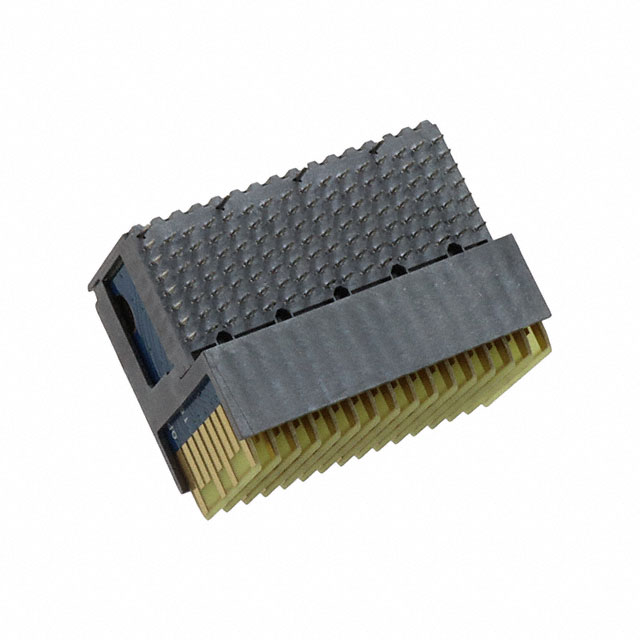

Image shown is a representation only
Manufacturer
Manufacturer No
RVPX-P16SM1
Packaging
Tray
Description
DAUGHTERCARD, 16 POSITION SINGLE
Detailed Description
112 Connector Plug, Male Blades Through Hole, Right Angle VITA 46, Center
DataSheet
Pitch
0.071" (1.80mm)
Series
R-VPX Evolution
Features
Board Guide
Packaging
Tray
Part Status
Active
Termination
Press-Fit
Manufacturer
Amphenol Aerospace Operations
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Blades
Contact Finish
Gold
Number of Rows
7
Connector Style
VITA 46, Center
Connector Usage
Daughtercard
Number of Columns
16
Base Product Number
RVPX-P
Number of Positions
112
Current Rating (Amps)
1.5A
Contact Finish Thickness
50.0µin (1.27µm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Pitch | 0.071" (1.80mm) |
| Series | R-VPX Evolution |
| Features | Board Guide |
| Packaging | Tray |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Amphenol Aerospace Operations |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Number of Rows | 7 |
| Connector Style | VITA 46, Center |
| Connector Usage | Daughtercard |
| Number of Columns | 16 |
| Base Product Number | RVPX-P |
| Number of Positions | 112 |
| Current Rating (Amps) | 1.5A |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Positions Loaded | All |
