Step1: Product

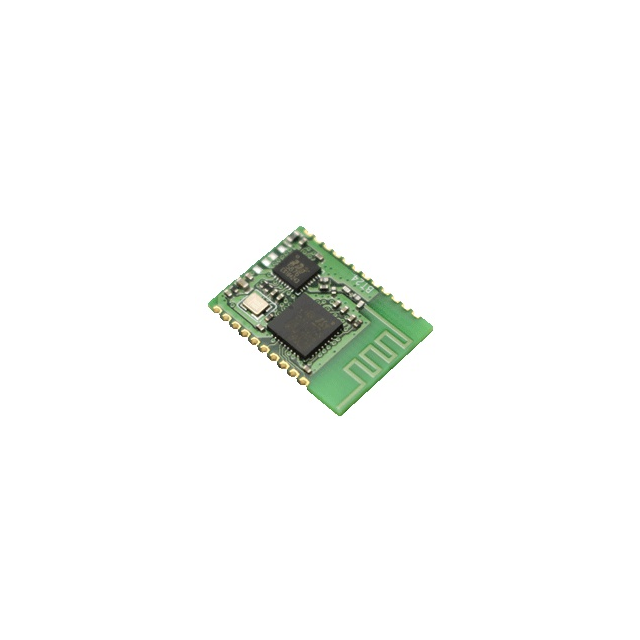

Amp'ed RF Tech BT24
Image shown is a representation only
Manufacturer
Manufacturer No
BT24
Package
22-SMD Module
Packaging
Tape & Reel (TR)
Description
RF TXRX MOD BLUETOOTH CHIP SMD
Detailed Description
Bluetooth Bluetooth v3.0, Class 2 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
Datasheet
Mfr
Amp'ed RF Tech
Protocol
Bluetooth v3.0, Class 2
Data Rate
3Mbps
Frequency
2.4GHz ~ 2.4835GHz
Packaging
Tape & Reel (TR)
Sensitivity
-90dBm
Antenna Type
Integrated, Chip
Mounting Type
Surface Mount
Package / Case
22-SMD Module
Power - Output
21.25dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
ADC, GPIO, I2C, PCM, SPI, UART
RF Family/Standard
Bluetooth
DigiKey Programmable
Not Verified
Operating Temperature
-20°C ~ 60°C
| Attribute | Value |
|---|---|
| Mfr | Amp'ed RF Tech |
| Protocol | Bluetooth v3.0, Class 2 |
| Data Rate | 3Mbps |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Packaging | Tape & Reel (TR) |
| Sensitivity | -90dBm |
| Antenna Type | Integrated, Chip |
| Mounting Type | Surface Mount |
| Package / Case | 22-SMD Module |
| Power - Output | 21.25dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | ADC, GPIO, I2C, PCM, SPI, UART |
| RF Family/Standard | Bluetooth |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -20°C ~ 60°C |
