Step1: Product

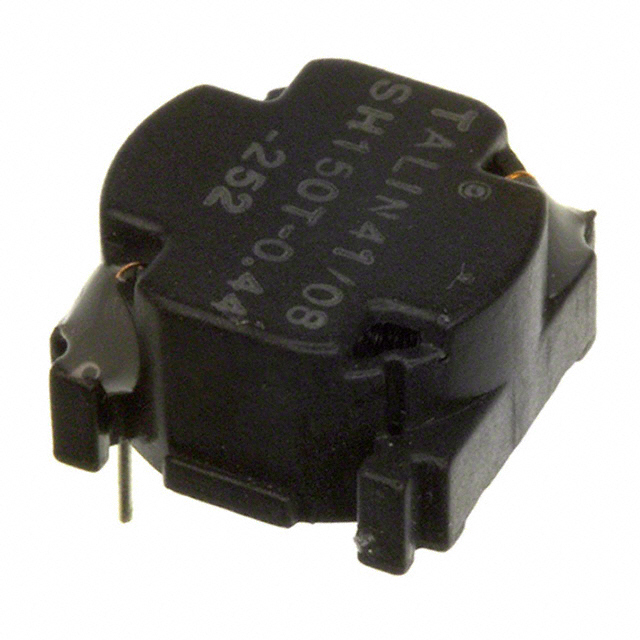

Amgis, LLC SH150T-0.44-252
Image shown is a representation only
Manufacturer
Manufacturer No
SH150T-0.44-252
Package
Radial, Horizontal - Corner Terminals
Packaging
Tray
Description
FIXED IND 252UH 440MA 900 MOHM
Detailed Description
252 µH Unshielded Toroidal Inductor 440 mA 900mOhm Radial, Horizontal - Corner Terminals
DataSheet
Mfr
Amgis, LLC
Type
Toroidal
Series
SH150
Packaging
Tray
Shielding
Unshielded
Tolerance
±20%
Inductance
252 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Radial, Horizontal - Corner Terminals
Material - Core
Iron Powder
Size / Dimension
0.551" L x 0.559" W (14.00mm x 14.20mm)
DC Resistance (DCR)
900mOhm
Current Rating (Amps)
440 mA
Height - Seated (Max)
0.311" (7.90mm)
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Amgis, LLC |
| Type | Toroidal |
| Series | SH150 |
| Packaging | Tray |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 252 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Material - Core | Iron Powder |
| Size / Dimension | 0.551" L x 0.559" W (14.00mm x 14.20mm) |
| DC Resistance (DCR) | 900mOhm |
| Current Rating (Amps) | 440 mA |
| Height - Seated (Max) | 0.311" (7.90mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
