Step1: Product
Amgis, LLC L01-6325

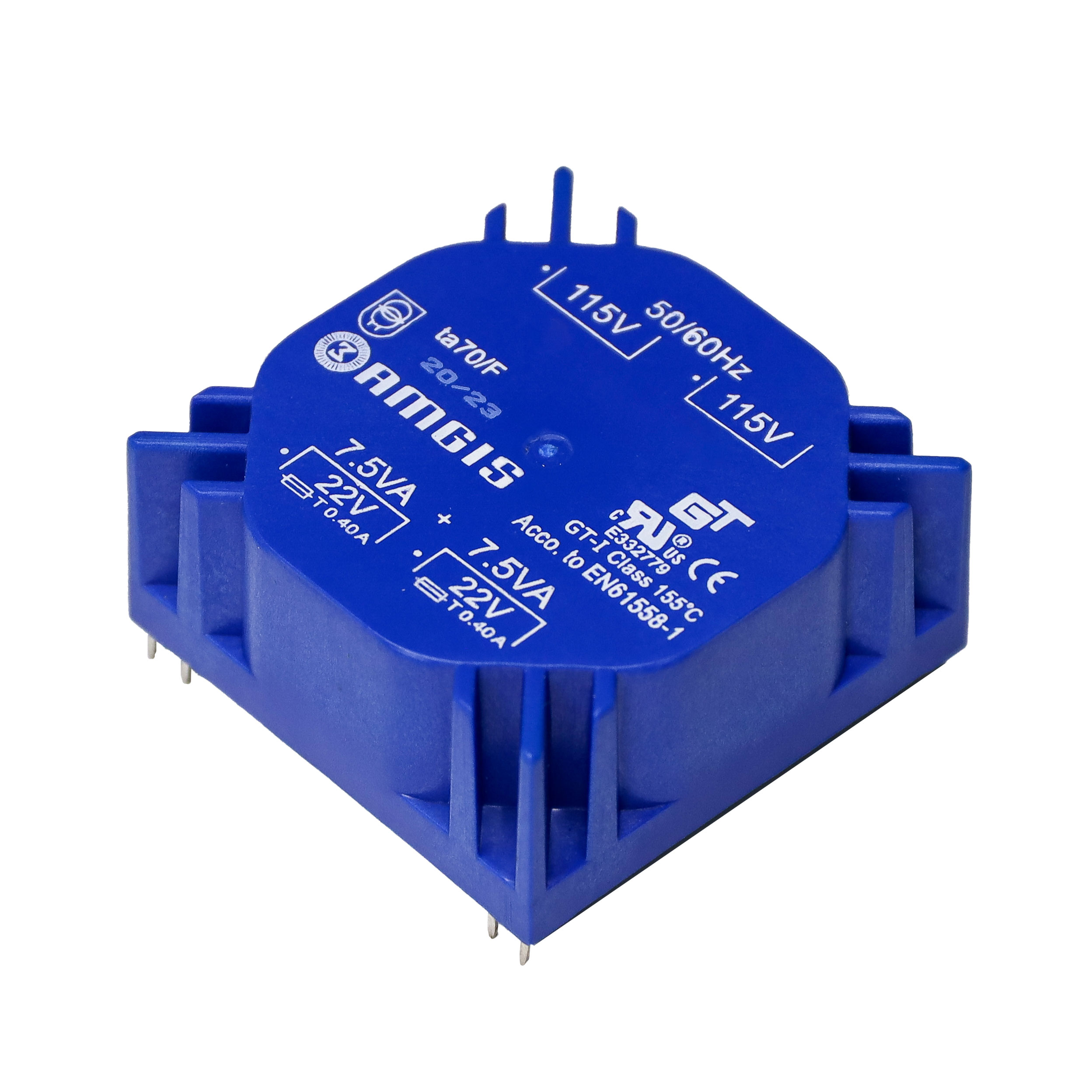

Image shown is a representation only
Manufacturer
Manufacturer No
L01-6325
Packaging
Tray
Description
PWR XFMR TOROIDAL 5VA TH
Detailed Description
Toroidal 5VA Power Transformer 115V, 230V Primary Parallel 22V, Series 44V Secondary Parallel 228mA, Series 114mA Through Hole
Datasheet
Type
Toroidal
Series
L01
Weight
0.319 lb (144.7 g)
Packaging
Tray
Center Tap
No
Power - Max
5VA
Manufacturer
Amgis, LLC
Mounting Type
Through Hole
Size / Dimension
49.70mm L x 49.70mm W
Termination Style
PC Pin
Voltage - Primary
115V, 230V
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Height - Seated (Max)
19.50mm
Current - Output (Max)
Parallel 228mA, Series 114mA
Voltage - Secondary (Full Load)
Parallel 22V, Series 44V
| Attribute | Value |
|---|---|
| Type | Toroidal |
| Series | L01 |
| Weight | 0.319 lb (144.7 g) |
| Packaging | Tray |
| Center Tap | No |
| Power - Max | 5VA |
| Manufacturer | Amgis, LLC |
| Mounting Type | Through Hole |
| Size / Dimension | 49.70mm L x 49.70mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V, 230V |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 19.50mm |
| Current - Output (Max) | Parallel 228mA, Series 114mA |
| Voltage - Secondary (Full Load) | Parallel 22V, Series 44V |
