Step1: Product
Amgis, LLC CCX-1075

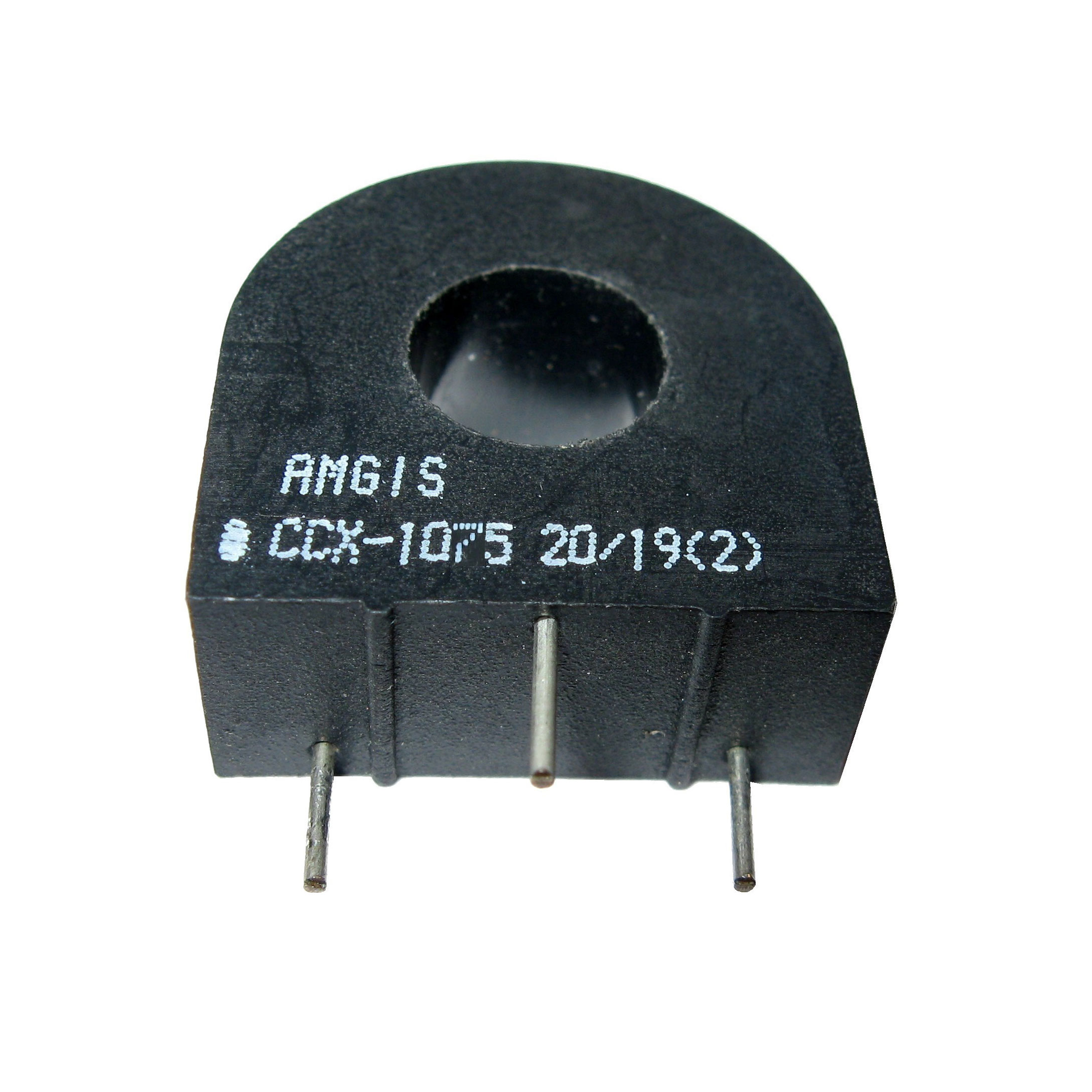

Image shown is a representation only
Manufacturer
Manufacturer No
CCX-1075
Packaging
Tray
Description
CURR SENSE XFMR 1:2500 75A TH
Detailed Description
75 A 1:2500 Current Sense Transformer 50Hz ~ 60Hz 218Ohm Through Hole
DataSheet
Type
Non-Invasive (Solid Core)
Series
CCX
Packaging
Tray
Part Status
Active
Manufacturer
Amgis, LLC
Mounting Type
Through Hole
Frequency Range
50Hz ~ 60Hz
Size / Dimension
1.189" L x 0.563" W (30.20mm x 14.30mm)
Termination Style
PC Pin
DC Resistance (DCR)
218Ohm
Current Rating (Amps)
75 A
Height - Seated (Max)
1.189" (30.20mm)
Turns Ratio - Primary:Secondary
1:2500
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | CCX |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | Amgis, LLC |
| Mounting Type | Through Hole |
| Frequency Range | 50Hz ~ 60Hz |
| Size / Dimension | 1.189" L x 0.563" W (30.20mm x 14.30mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 218Ohm |
| Current Rating (Amps) | 75 A |
| Height - Seated (Max) | 1.189" (30.20mm) |
| Turns Ratio - Primary:Secondary | 1:2500 |
