Step1: Product

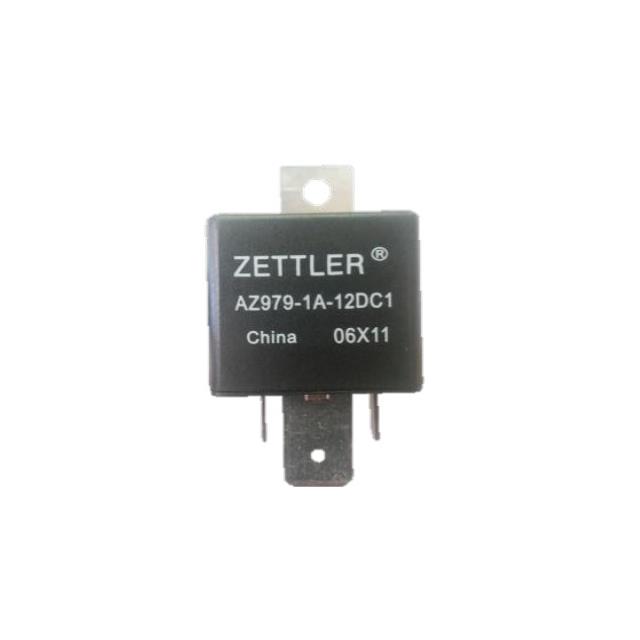

American Zettler AZ979-1A-12DRC1E
Image shown is a representation only
Manufacturer
Manufacturer No
AZ979-1A-12DRC1E
Packaging
Box
Description
RELAY AUTOMOTIVE SPST 80A 12V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
DataSheet
Series
AZ979
Features
Resistor, Sealed - Epoxy, SUPER-ISO w/ Steel Mounting Bracket
Coil Type
Non Latching
Packaging
Box
Coil Power
1.6W
Part Status
Active
Coil Current
133.3 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
American Zettler
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Chassis Mount
Coil Resistance
90 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
30VDC - Max
Termination Style
Plug In, Quick Connect - Multiple Sizes
Must Operate Voltage
7.8 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
80 A
| Attribute | Value |
|---|---|
| Series | AZ979 |
| Features | Resistor, Sealed - Epoxy, SUPER-ISO w/ Steel Mounting Bracket |
| Coil Type | Non Latching |
| Packaging | Box |
| Coil Power | 1.6W |
| Part Status | Active |
| Coil Current | 133.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | American Zettler |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 90 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 30VDC - Max |
| Termination Style | Plug In, Quick Connect - Multiple Sizes |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 80 A |
