Step1: Product

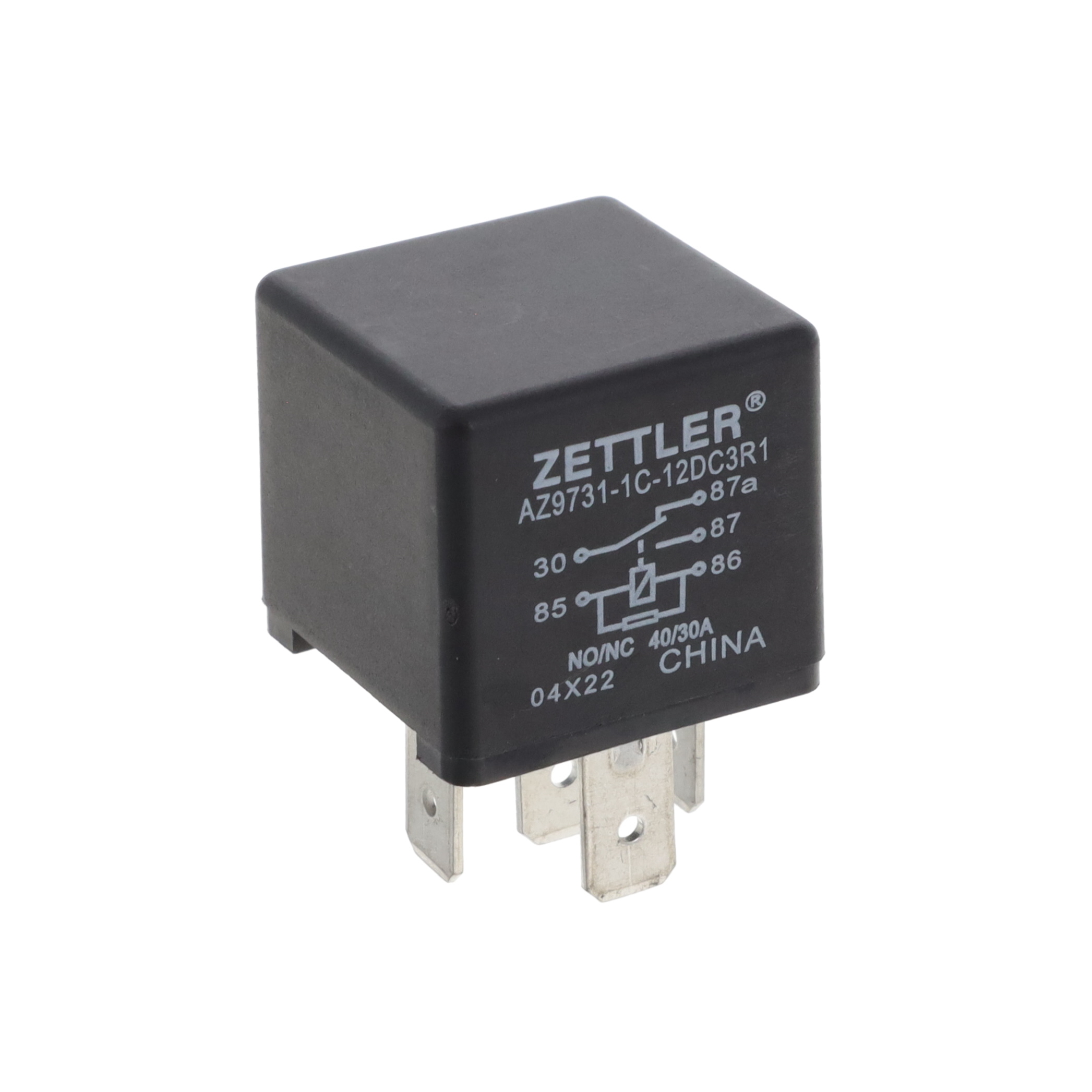

American Zettler AZ9731-1C-12DC3R1
Image shown is a representation only
Manufacturer
Manufacturer No
AZ9731-1C-12DC3R1
Packaging
Tray
Description
RELAY AUTOMOTIVE SPDT 30A 12V
Detailed Description
Automotive Relay SPDT (1 Form C) 12VDC Coil Socketable
Datasheet
Series
AZ9731
Features
MINI-ISO, Resistor
Coil Type
Non Latching
Packaging
Tray
Coil Power
1.6W
Coil Current
133.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Manufacturer
American Zettler
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Socketable
Coil Resistance
90 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
75VDC - Max
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Base Product Number
AZ9731
Must Operate Voltage
7.8 VDC
Must Release Voltage
1.8 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Series | AZ9731 |
| Features | MINI-ISO, Resistor |
| Coil Type | Non Latching |
| Packaging | Tray |
| Coil Power | 1.6W |
| Coil Current | 133.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | American Zettler |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Socketable |
| Coil Resistance | 90 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 75VDC - Max |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | AZ9731 |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 30 A |
