Step1: Product

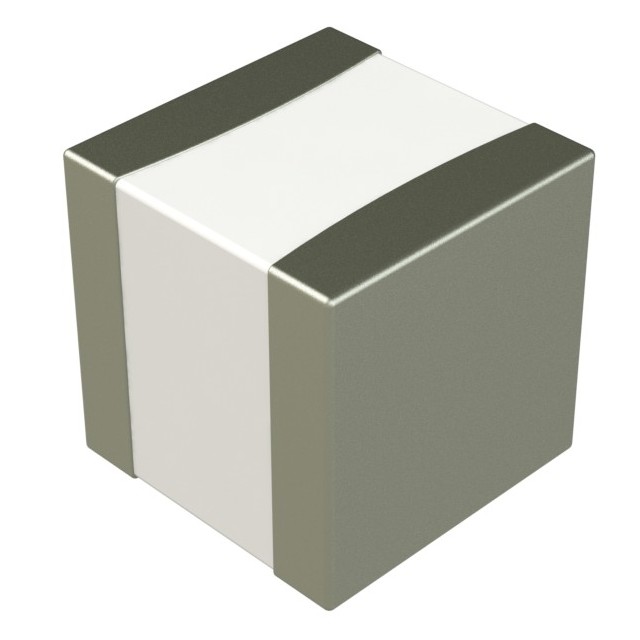

American Technical Ceramics 100A100GTN150X
Image shown is a representation only
Manufacturer
Manufacturer No
100A100GTN150X
Quantity
77772
Availability
In Stock
Package
0505 (1313 Metric)
Packaging
Tray
Description
CAP CER 10PF 150V P90 0505
Detailed Description
10 pF ±2% 150V Ceramic Capacitor P90 0505 (1313 Metric)
DataSheet
Mfr
American Technical Ceramics
Series
Porcelain Superchip® ATC 100A
Features
High Q, Low Loss, Low ESL
Packaging
Tray
Tolerance
±2%
Capacitance
10 pF
Part Status
Active
Applications
RF, Microwave, High Frequency, Bypass, Decoupling
Mounting Type
Surface Mount, MLCC
Package / Case
0505 (1313 Metric)
Thickness (Max)
0.057" (1.45mm)
Voltage - Rated
150V
Size / Dimension
0.055" L x 0.055" W (1.40mm x 1.40mm)
Operating Temperature
-55°C ~ 125°C
Temperature Coefficient
P90
| Attribute | Value |
|---|---|
| Mfr | American Technical Ceramics |
| Series | Porcelain Superchip® ATC 100A |
| Features | High Q, Low Loss, Low ESL |
| Packaging | Tray |
| Tolerance | ±2% |
| Capacitance | 10 pF |
| Part Status | Active |
| Applications | RF, Microwave, High Frequency, Bypass, Decoupling |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0505 (1313 Metric) |
| Thickness (Max) | 0.057" (1.45mm) |
| Voltage - Rated | 150V |
| Size / Dimension | 0.055" L x 0.055" W (1.40mm x 1.40mm) |
| Operating Temperature | -55°C ~ 125°C |
| Temperature Coefficient | P90 |
