Step1: Product

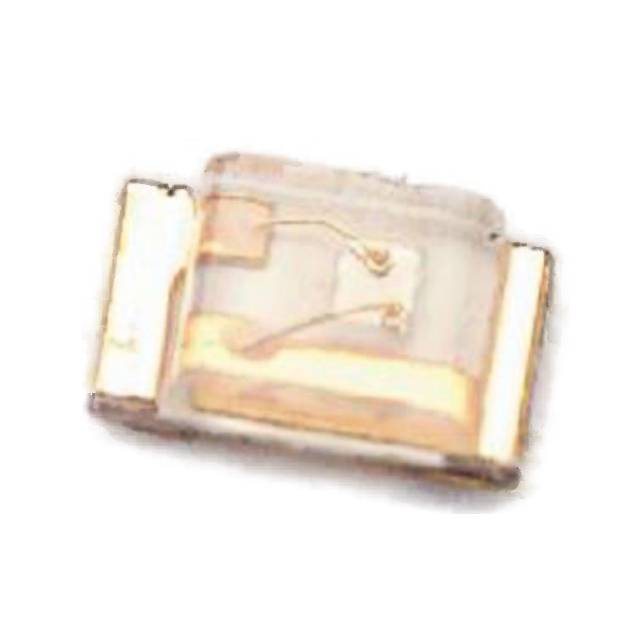

American Opto Plus LED L171L-LIC-TR
Image shown is a representation only
Manufacturer
Manufacturer No
L171L-LIC-TR
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
LED RED CLEAR 0805 SMD
Detailed Description
Red 640nm LED Indication - Discrete 1.95V 0805 (2012 Metric)
DataSheet
Mfr
American Opto Plus LED
Color
Red
Lens Size
1.40mm x 1.25mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.90mm
Mounting Type
Surface Mount
Viewing Angle
130°
Current - Test
20mA
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Clear
Wavelength - Peak
645nm
Millicandela Rating
80mcd
Wavelength - Dominant
640nm
Supplier Device Package
0805
Voltage - Forward (Vf) (Typ)
1.95V
| Attribute | Value |
|---|---|
| Mfr | American Opto Plus LED |
| Color | Red |
| Lens Size | 1.40mm x 1.25mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.90mm |
| Mounting Type | Surface Mount |
| Viewing Angle | 130° |
| Current - Test | 20mA |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 645nm |
| Millicandela Rating | 80mcd |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | 0805 |
| Voltage - Forward (Vf) (Typ) | 1.95V |
