American High Voltage 580184c

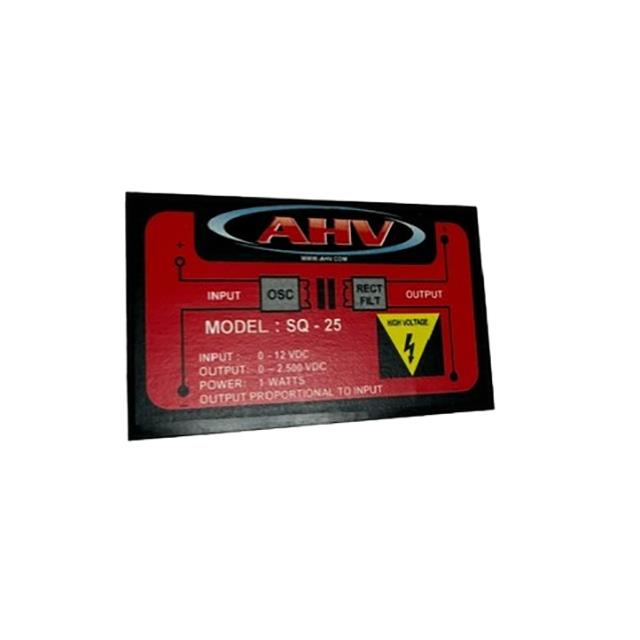

Image shown is a representation only
Manufacturer
Manufacturer No
580184c
Package
4-DIP Module, 4 Leads
Packaging
Bulk
Description
SQ-25
Detailed Description
Enclosed DC DC Converter 1 Output 0 ~ 2500V 0V - 12V Input
DataSheet
Mfr
American High Voltage
Type
Enclosed
Series
SQ (1W)
Packaging
Bulk
Efficiency
85%
Part Status
Active
Mounting Type
Through Hole
Power (Watts)
1 W
Package / Case
4-DIP Module, 4 Leads
Size / Dimension
2.50" L x 1.50" W x 0.75" H (63.5mm x 38.1mm x 19.0mm)
Number of Outputs
1
Voltage - Output 1
0 ~ 2500V
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 71°C
Voltage - Input (Max)
12V
Voltage - Input (Min)
0V
Supplier Device Package
4-DIP
| Attribute | Value |
|---|---|
| Mfr | American High Voltage |
| Type | Enclosed |
| Series | SQ (1W) |
| Packaging | Bulk |
| Efficiency | 85% |
| Part Status | Active |
| Mounting Type | Through Hole |
| Power (Watts) | 1 W |
| Package / Case | 4-DIP Module, 4 Leads |
| Size / Dimension | 2.50" L x 1.50" W x 0.75" H (63.5mm x 38.1mm x 19.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ 2500V |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 71°C |
| Voltage - Input (Max) | 12V |
| Voltage - Input (Min) | 0V |
| Supplier Device Package | 4-DIP |
