Step1: Product

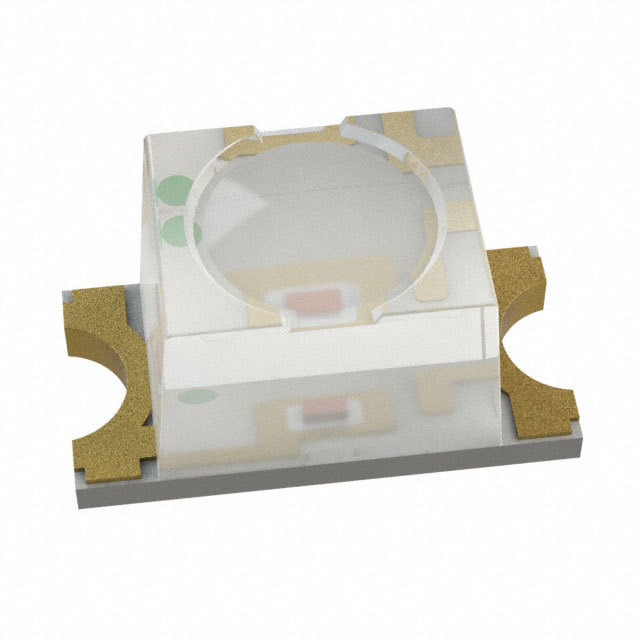

American Bright Optoelectronics Corporation BL-HJEKC36J-TRB
Image shown is a representation only
Manufacturer
Manufacturer No
BL-HJEKC36J-TRB
Package
0606 (1616 Metric)
Packaging
Tape & Reel (TR)
Description
LED ORANGE-RED/YL CLR 0605 SMD
Detailed Description
Orange-Red, Yellow 620nm Orange-Red, 589nm Yellow LED Indication - Discrete 2.2V Orange-Red, 2.2V Yellow 0606 (1616 Metric)
DataSheet
Mfr
American Bright Optoelectronics Corporation
Color
Orange-Red, Yellow
Lens Size
1.50mm x 1.00mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.65mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Orange-Red, 20mA Yellow
Package / Case
0606 (1616 Metric)
Size / Dimension
1.60mm L x 1.50mm W
Lens Transparency
Clear
Wavelength - Peak
625nm Orange-Red, 590nm Yellow
Base Product Number
BL-HJEKC36
Millicandela Rating
120mcd Orange-Red, 120mcd Yellow
Wavelength - Dominant
620nm Orange-Red, 589nm Yellow
Supplier Device Package
0605
Voltage - Forward (Vf) (Typ)
2.2V Orange-Red, 2.2V Yellow
| Attribute | Value |
|---|---|
| Mfr | American Bright Optoelectronics Corporation |
| Color | Orange-Red, Yellow |
| Lens Size | 1.50mm x 1.00mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.65mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Orange-Red, 20mA Yellow |
| Package / Case | 0606 (1616 Metric) |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 625nm Orange-Red, 590nm Yellow |
| Base Product Number | BL-HJEKC36 |
| Millicandela Rating | 120mcd Orange-Red, 120mcd Yellow |
| Wavelength - Dominant | 620nm Orange-Red, 589nm Yellow |
| Supplier Device Package | 0605 |
| Voltage - Forward (Vf) (Typ) | 2.2V Orange-Red, 2.2V Yellow |
