Step1: Product
Amazing AZ3028-08P

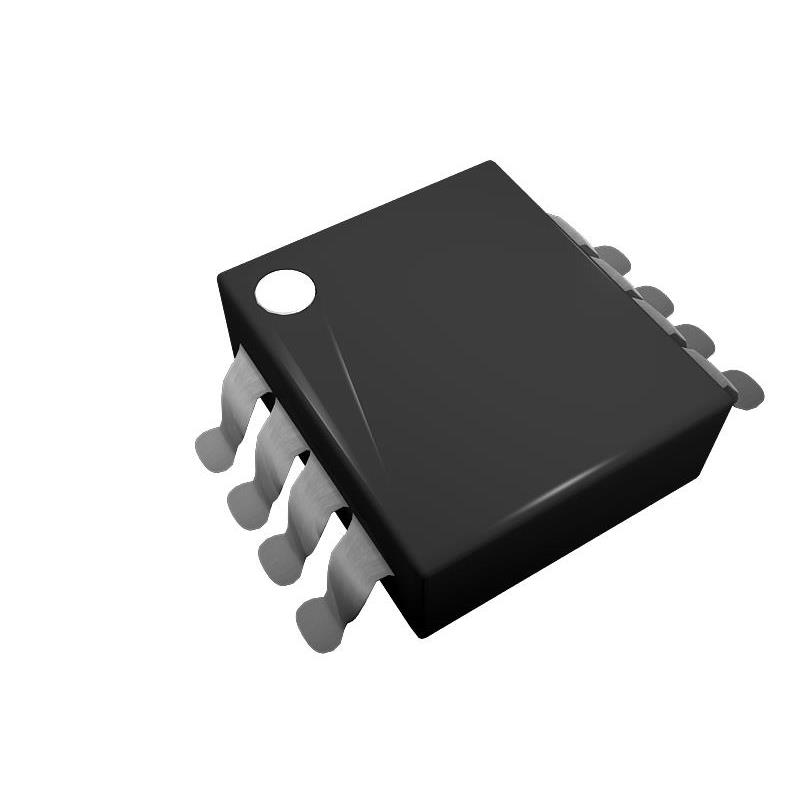

Image shown is a representation only
Manufacturer
Manufacturer No
AZ3028-08P
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR)
Description
TVS DEVICE HIGH SPEED 8-CH 2.8V
Detailed Description
12V (Typ) Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 8-SO
DataSheet
Mfr
Amazing
Series
TVS/ESD/EOS
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
Data Line
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Operating Temperature
-55°C ~ 125°C
Power Line Protection
No
Bidirectional Channels
8
Capacitance @ Frequency
3pF @ 1MHz
Supplier Device Package
8-SO
Voltage - Breakdown (Min)
3V
Voltage - Clamping (Max) @ Ipp
12V (Typ)
Voltage - Reverse Standoff (Typ)
2.8V (Max)
Current - Peak Pulse (10/1000µs)
30A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Amazing |
| Series | TVS/ESD/EOS |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | Data Line |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -55°C ~ 125°C |
| Power Line Protection | No |
| Bidirectional Channels | 8 |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Supplier Device Package | 8-SO |
| Voltage - Breakdown (Min) | 3V |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) |
| Voltage - Reverse Standoff (Typ) | 2.8V (Max) |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) |
