Alpha & Omega Semiconductor Inc. AON7423

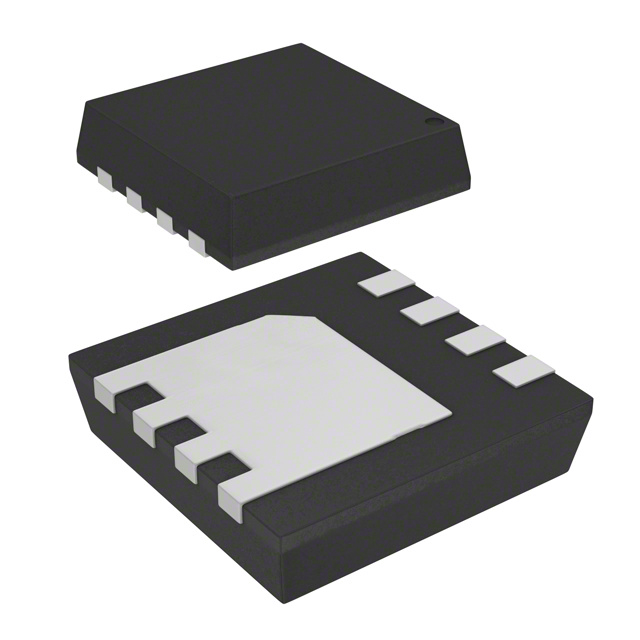

Image shown is a representation only
Manufacturer
Manufacturer No
AON7423
Quantity
6799
Availability
In Stock
Package
8-PowerWDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET P-CH 20V 28A/50A 8DFN
Detailed Description
P-Channel 20 V 28A (Ta), 50A (Tc) 6.2W (Ta), 83W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
DataSheet
Mfr
Alpha & Omega Semiconductor Inc.
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±8V
Technology
MOSFET (Metal Oxide)
Part Status
Not For New Designs
Mounting Type
Surface Mount
Package / Case
8-PowerWDFN
Vgs(th) (Max) @ Id
900mV @ 250µA
Base Product Number
AON742
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
5mOhm @ 20A, 4.5V
Power Dissipation (Max)
6.2W (Ta), 83W (Tc)
Supplier Device Package
8-DFN-EP (3.3x3.3)
Gate Charge (Qg) (Max) @ Vgs
100 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
5626 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
28A (Ta), 50A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Alpha & Omega Semiconductor Inc. |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Not For New Designs |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Base Product Number | AON742 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 20A, 4.5V |
| Power Dissipation (Max) | 6.2W (Ta), 83W (Tc) |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5626 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 50A (Tc) |
