Step1: Product

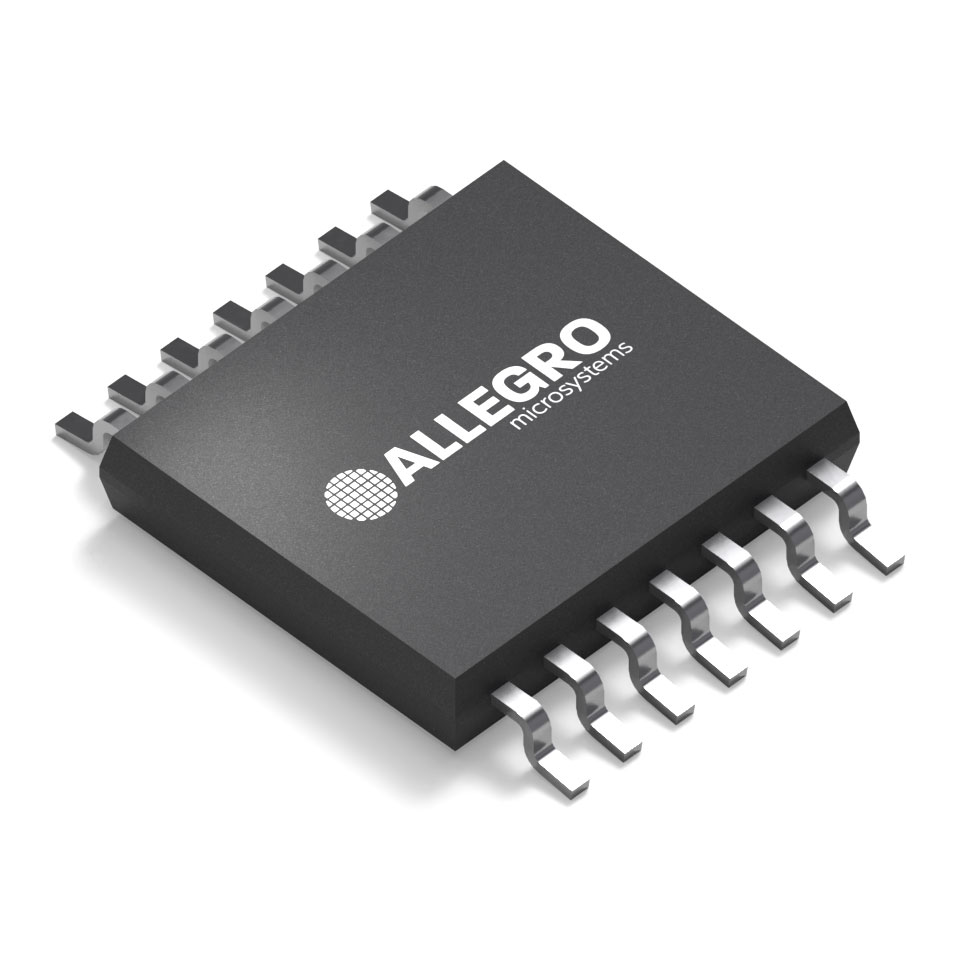

Allegro MicroSystems A33110KLEATR-S
Image shown is a representation only
Manufacturer
Manufacturer No
A33110KLEATR-S
Package
14-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
PRECISION TMR ANGLE SENSOR IC WI
Detailed Description
Hall Effect Sensor Angle, Rotary Position External Magnet, Not Included SMD (SMT) Tab
Datasheet
Grade
Automotive
Output
PWM, SPI
Packaging
Tape & Reel (TR); Cut Tape (CT)
Resistance
100 kOhms
Technology
Hall Effect
Manufacturer
Allegro MicroSystems
Actuator Type
External Magnet, Not Included
For Measuring
Angle, Rotary Position
Mounting Type
Surface Mount
Output Signal
Clockwise Increase, Counterclockwise Increase
Qualification
AEC-Q100
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Voltage - Supply
3.7V ~ 19V
Termination Style
SMD (SMT) Tab
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
14-TSSOP
Rotation Angle - Electrical, Mechanical
0° ~ 360°
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | PWM, SPI |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Resistance | 100 kOhms |
| Technology | Hall Effect |
| Manufacturer | Allegro MicroSystems |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle, Rotary Position |
| Mounting Type | Surface Mount |
| Output Signal | Clockwise Increase, Counterclockwise Increase |
| Qualification | AEC-Q100 |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Voltage - Supply | 3.7V ~ 19V |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 14-TSSOP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
