Step1: Product

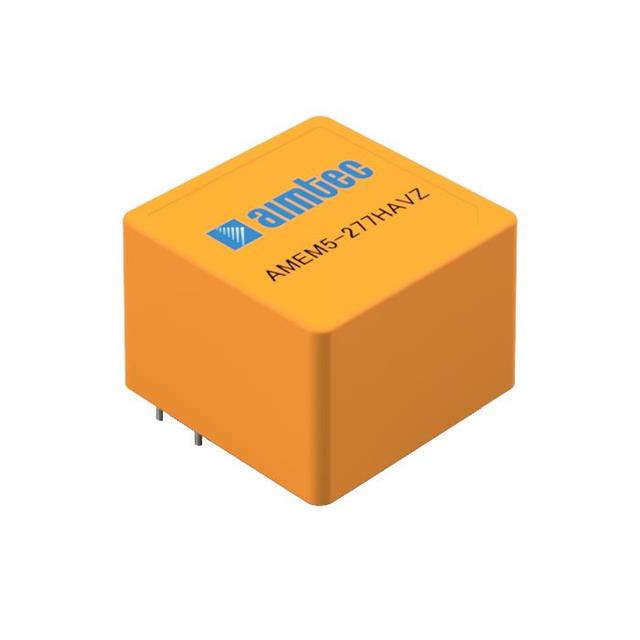

aimtec AMEM5-12S277HAVZ-B
Image shown is a representation only
Manufacturer
Manufacturer No
AMEM5-12S277HAVZ-B
Package
5-DIP Module, 4 Leads
Packaging
Box
Description
AC/DC CONVERTER 12V 5W
Detailed Description
Enclosed AC DC Converters 1 Output 12V 416mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
DataSheet
Type
Enclosed
Series
AMEM5-277HAVZ
Weight
0.040 lb (18.00 g)
Packaging
Box
Efficiency
80.5%
Part Status
Active
Applications
Household Appliances, ITE (Commercial)
Manufacturer
aimtec
Mounting Type
Through Hole
Power (Watts)
5 W
Package / Case
5-DIP Module, 4 Leads
Approval Agency
CE, UL
Line Regulation
±0.5%
Load Regulation
±1%
Standard Number
60335-1; 62368-1
Voltage - Input
85 ~ 305 VAC, 100 ~ 430 VDC
Size / Dimension
1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Number of Outputs
1
Voltage - Output 1
12V
Base Product Number
AMEM5
Operating Temperature
-40°C ~ 85°C (With Derating)
Current - Output (Max)
416mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | AMEM5-277HAVZ |
| Weight | 0.040 lb (18.00 g) |
| Packaging | Box |
| Efficiency | 80.5% |
| Part Status | Active |
| Applications | Household Appliances, ITE (Commercial) |
| Manufacturer | aimtec |
| Mounting Type | Through Hole |
| Power (Watts) | 5 W |
| Package / Case | 5-DIP Module, 4 Leads |
| Approval Agency | CE, UL |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Standard Number | 60335-1; 62368-1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Size / Dimension | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Base Product Number | AMEM5 |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Current - Output (Max) | 416mA |
