Step1: Product
Aillen UZ108M6R3HFKTA

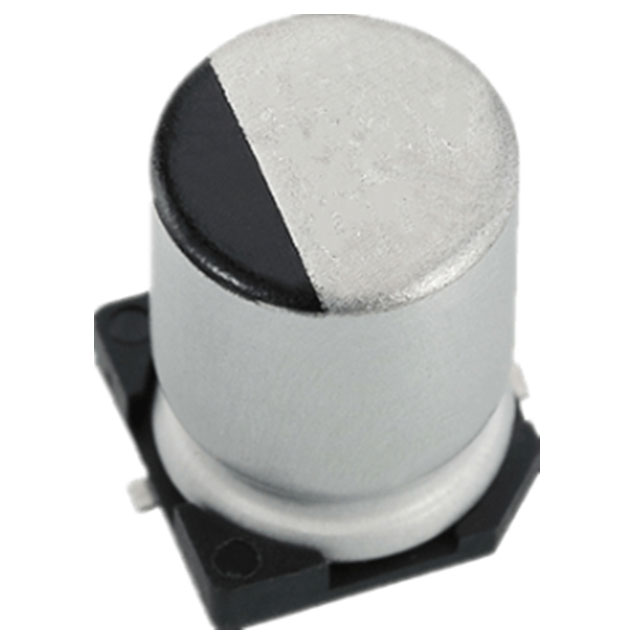

Image shown is a representation only
Manufacturer
Manufacturer No
UZ108M6R3HFKTA
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR)
Description
CAP ALUM 1000UF 20% 6.3V SMD
Detailed Description
1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 170mOhm 2000 Hrs @ 105°C
DataSheet
Mfr
Aillen
Series
UZ
Impedance
170 mOhms
Packaging
Tape & Reel (TR)
Tolerance
±20%
Capacitance
1000 µF
Part Status
Active
Applications
General Purpose
Polarization
Polar
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
6.3 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.315" Dia (8.00mm)
Height - Seated (Max)
0.433" (11.00mm)
Operating Temperature
-55°C ~ 105°C
Surface Mount Land Size
0.327" L x 0.327" W (8.30mm x 8.30mm)
Ripple Current @ High Frequency
450 mA @ 100 kHz
ESR (Equivalent Series Resistance)
170mOhm
| Attribute | Value |
|---|---|
| Mfr | Aillen |
| Series | UZ |
| Impedance | 170 mOhms |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Capacitance | 1000 µF |
| Part Status | Active |
| Applications | General Purpose |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 6.3 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| ESR (Equivalent Series Resistance) | 170mOhm |
