Step1: Product
Advanced Photonix 0090-3111-185

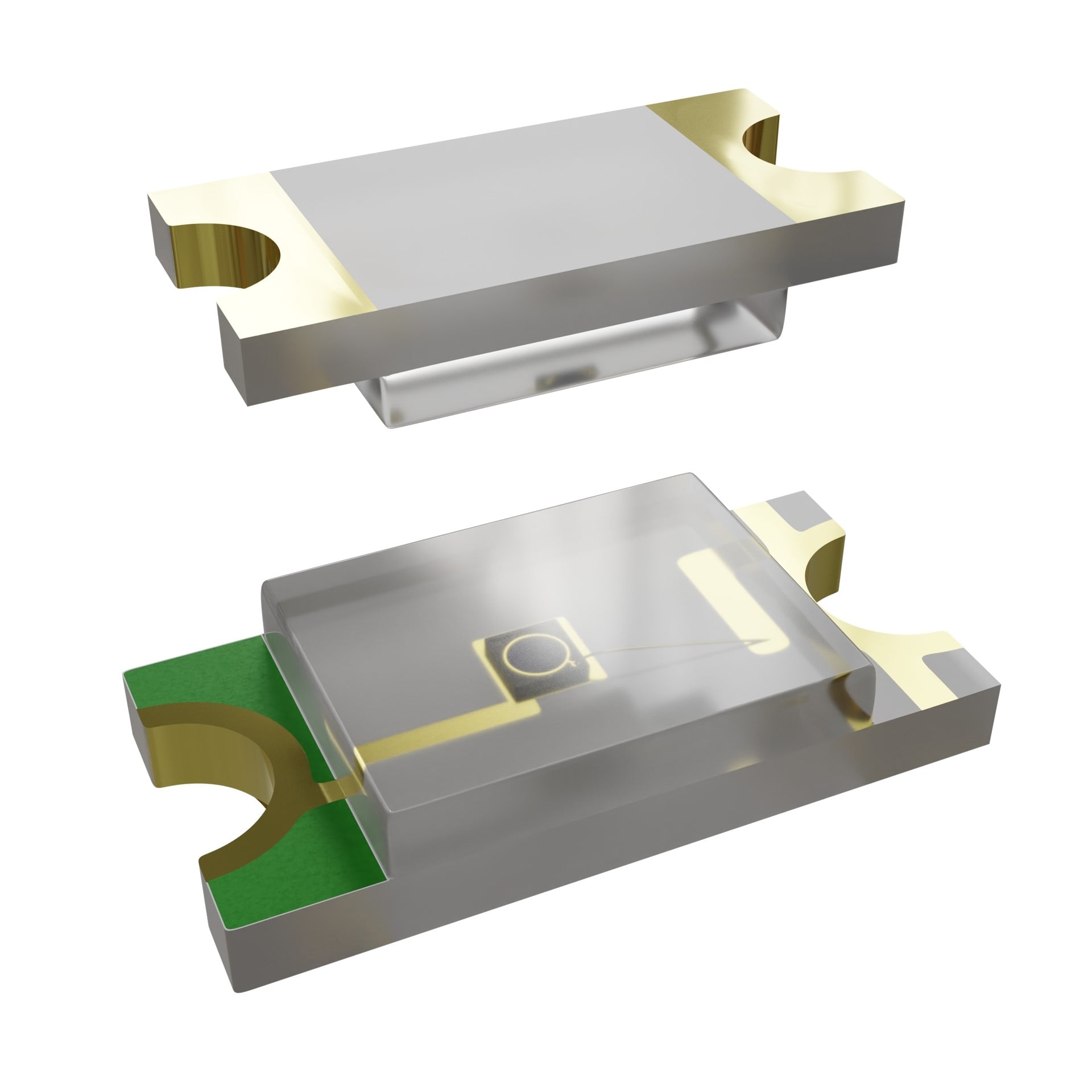

Image shown is a representation only
Manufacturer
Manufacturer No
0090-3111-185
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SENSOR PHOTODIOD 800-1700NM 1206
Detailed Description
Photodiode 1206 (3216 Metric)
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Active Area
0.30mm Dia
Part Status
Active
Manufacturer
Advanced Photonix
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric)
Spectral Range
800nm ~ 1700nm
Color - Enhanced
Infrared (NIR)/Red
Responsivity @ nm
0.95 A/W @ 1300nm, 1.0 A/W @ 1500nm
Base Product Number
90
Current - Dark (Typ)
200pA
Operating Temperature
-40°C ~ 100°C
Voltage - DC Reverse (Vr) (Max)
20 V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Active Area | 0.30mm Dia |
| Part Status | Active |
| Manufacturer | Advanced Photonix |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Spectral Range | 800nm ~ 1700nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.95 A/W @ 1300nm, 1.0 A/W @ 1500nm |
| Base Product Number | 90 |
| Current - Dark (Typ) | 200pA |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
