Step1: Product

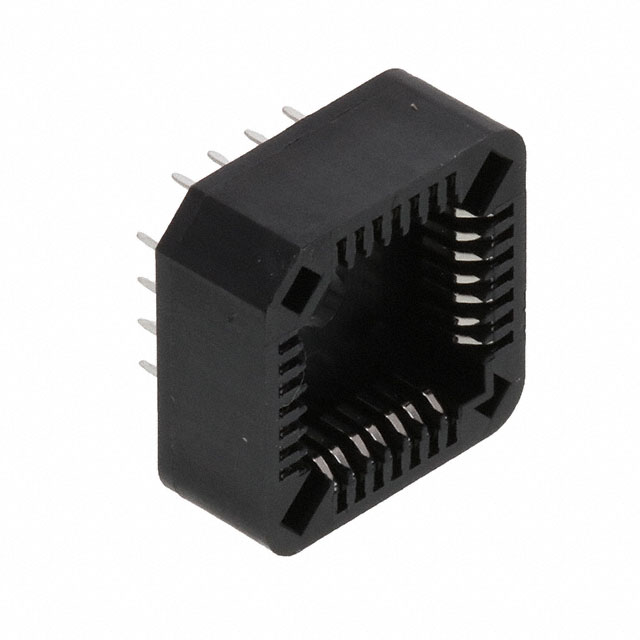

Adam Tech PLCC-28-AT
Image shown is a representation only
Manufacturer
Manufacturer No
PLCC-28-AT
Packaging
Tube
Description
PLCC 28P THROUGH HOLE
Detailed Description
28 (4 x 7) Pos PLCC Socket Tin Through Hole
Datasheet
Type
PLCC
Series
PLCC
Features
Closed Frame
Packaging
Tube
Termination
Solder
Manufacturer
Adam Tech
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.050" (1.27mm)
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Resistance
30mOhm
Base Product Number
PLCC
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Termination Post Length
0.126" (3.20mm)
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Finish Thickness - Mating
80.0µin (2.03µm)
Number of Positions or Pins (Grid)
28 (4 x 7)
| Attribute | Value |
|---|---|
| Type | PLCC |
| Series | PLCC |
| Features | Closed Frame |
| Packaging | Tube |
| Termination | Solder |
| Manufacturer | Adam Tech |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Resistance | 30mOhm |
| Base Product Number | PLCC |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Termination Post Length | 0.126" (3.20mm) |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Number of Positions or Pins (Grid) | 28 (4 x 7) |
