Step1: Product

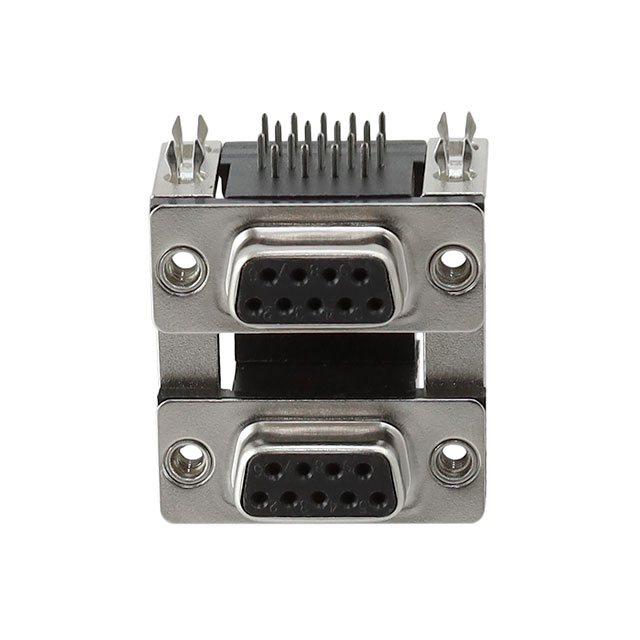

Adam Tech DPD-09-00-B3
Image shown is a representation only
Manufacturer
Manufacturer No
DPD-09-00-B3
Packaging
Tray
Description
CONN D-TYPE RCPT 9POS R/A SLDR
Detailed Description
9, 9 Position D-Type - Stacked Receptacle, Female Sockets Connector
DataSheet
Mfr
Adam Tech
Color
Black
Series
DPD
Features
Board Lock, Mounting Brackets
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Form
Stamped
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (4-40)
Number of Rows
2, 2
Voltage Rating
250VAC
Backset Spacing
0.318" (8.08mm)
Connector Style
D-Type - Stacked
Contact Material
Copper Alloy
Base Product Number
DPD-09
Dielectric Material
Polybutylene Terephthalate (PBT)
Number of Positions
9, 9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 85°C
Shell Material, Finish
Steel, Nickel Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E); 1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Color | Black |
| Series | DPD |
| Features | Board Lock, Mounting Brackets |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Stamped |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 2, 2 |
| Voltage Rating | 250VAC |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Type - Stacked |
| Contact Material | Copper Alloy |
| Base Product Number | DPD-09 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9, 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 85°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
