Step1: Product

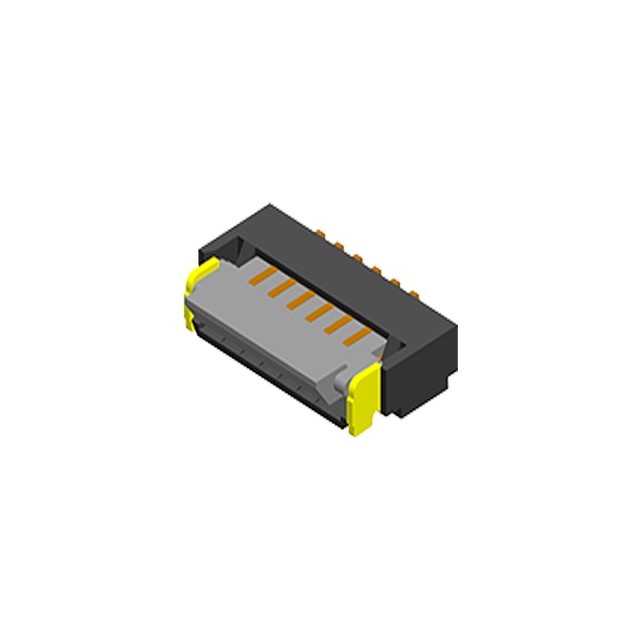

Aces Connectors 50521-01141-001
Image shown is a representation only
Manufacturer
Manufacturer No
50521-01141-001
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
11 POS, 0.5 MM PITCH EASY-ON FFC
Detailed Description
11 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
50521
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Aces Connectors
Housing Color
Black
Mounting Type
Surface Mount, Right Angle
Actuator Color
Natural
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Actuator Material
Thermoplastic
FFC, FCB Thickness
0.30mm
Number of Positions
11
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | 50521 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Aces Connectors |
| Housing Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Natural |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| FFC, FCB Thickness | 0.30mm |
| Number of Positions | 11 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
