Step1: Product
Abracon LLC ASDDV-8.000MHZ-LR-T

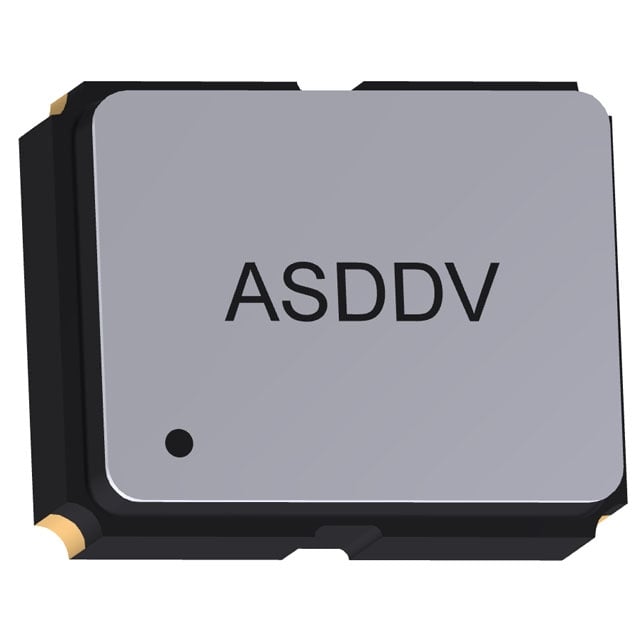

Image shown is a representation only
Manufacturer
Manufacturer No
ASDDV-8.000MHZ-LR-T
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OSC XO 8.000MHZ CMOS SMD
Detailed Description
8 MHz XO (Standard) HCMOS, LVCMOS Oscillator 1.6V ~ 3.6V Enable/Disable 4-SMD, No Lead
DataSheet
Mfr
Abracon LLC
Type
XO (Standard)
Output
HCMOS, LVCMOS
Series
ASDDV
Function
Enable/Disable
Frequency
8 MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Mounting Type
Surface Mount
Base Resonator
Crystal
Package / Case
4-SMD, No Lead
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Voltage - Supply
1.6V ~ 3.6V
Frequency Stability
±25ppm
Height - Seated (Max)
0.037" (0.95mm)
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
2mA
Supplier Device Package
4-SMD (2.5x2)
Current - Supply (Disable) (Max)
10µA
| Attribute | Value |
|---|---|
| Mfr | Abracon LLC |
| Type | XO (Standard) |
| Output | HCMOS, LVCMOS |
| Series | ASDDV |
| Function | Enable/Disable |
| Frequency | 8 MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Base Resonator | Crystal |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Voltage - Supply | 1.6V ~ 3.6V |
| Frequency Stability | ±25ppm |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 2mA |
| Supplier Device Package | 4-SMD (2.5x2) |
| Current - Supply (Disable) (Max) | 10µA |
