Step1: Product
ABC Taiwan Electronics Corp. CM4532R22MSB

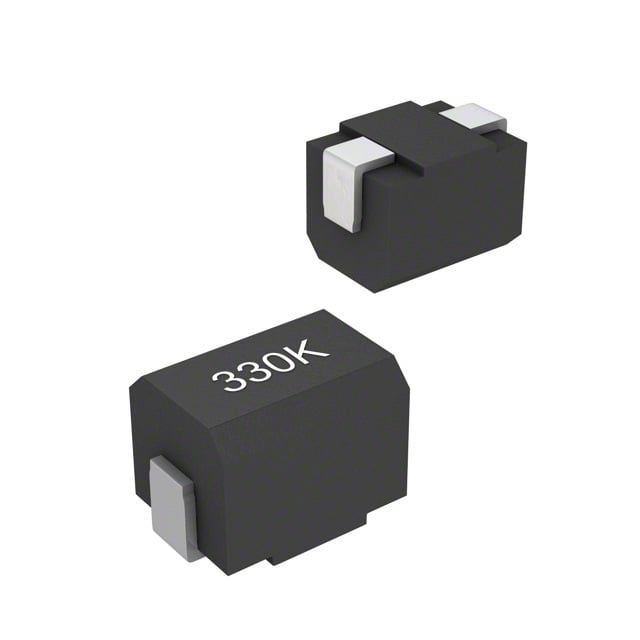

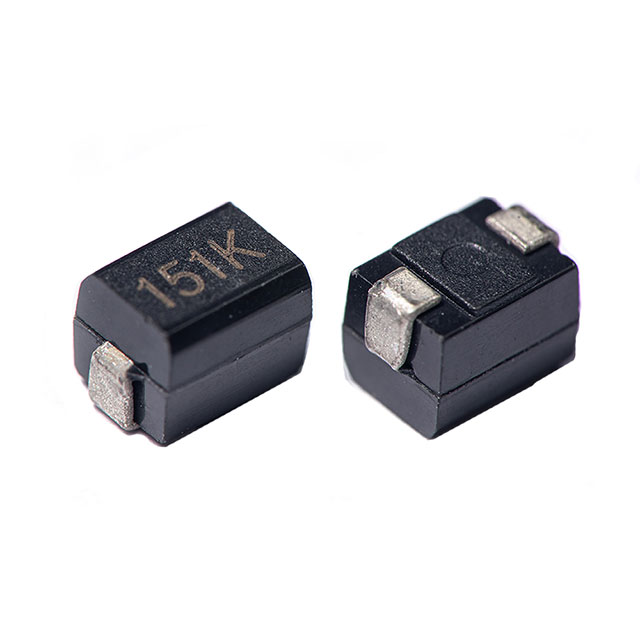

Image shown is a representation only
Manufacturer
Manufacturer No
CM4532R22MSB
Package
1812 (4532 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 220NH 665MA 250 MOHM
Detailed Description
220 nH Unshielded Wirewound Inductor 665 mA 250mOhm Max 1812 (4532 Metric)
Mfr
ABC Taiwan Electronics Corp.
Type
Wirewound
Series
CM4532-S
Q @ Freq
40 @ 25.2MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Inductance
220 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric)
Material - Core
Ferrite
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
DC Resistance (DCR)
250mOhm Max
Current Rating (Amps)
665 mA
Height - Seated (Max)
0.134" (3.40mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1812
Frequency - Self Resonant
505MHz
Inductance Frequency - Test
25.2 MHz
| Attribute | Value |
|---|---|
| Mfr | ABC Taiwan Electronics Corp. |
| Type | Wirewound |
| Series | CM4532-S |
| Q @ Freq | 40 @ 25.2MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 220 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| DC Resistance (DCR) | 250mOhm Max |
| Current Rating (Amps) | 665 mA |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1812 |
| Frequency - Self Resonant | 505MHz |
| Inductance Frequency - Test | 25.2 MHz |
