Step1: Product

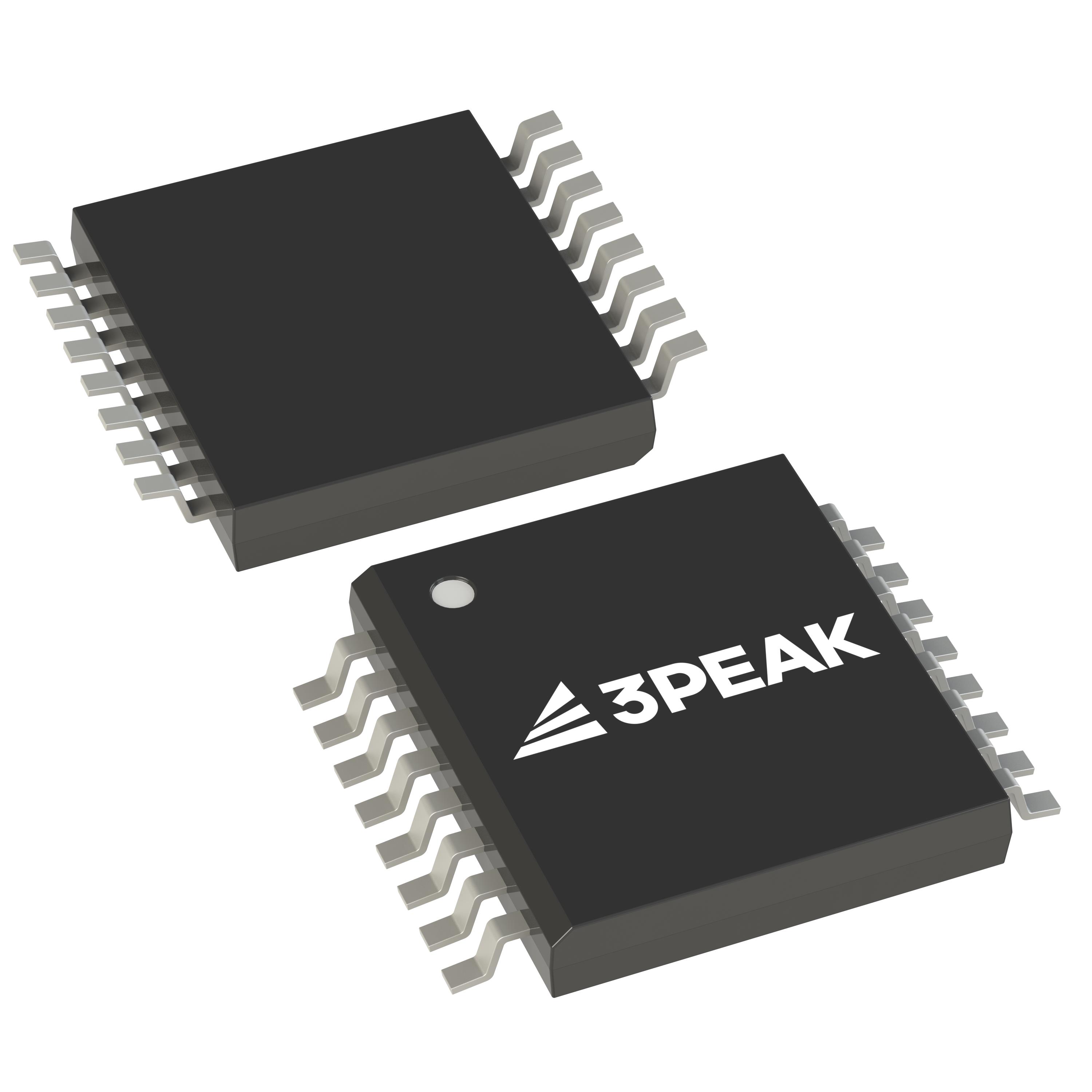

3PEAK TPM8860-TSBR
Image shown is a representation only
Manufacturer
Manufacturer No
TPM8860-TSBR
Package
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC LOW SIDE DRIVER 48V 16-ETSSOP
Detailed Description
Power Switch/Driver 1:8 N-Channel 1.5A 16-ETSSOP
DataSheet
Mfr
3PEAK
Interface
Serial
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Active
Switch Type
Relay, Solenoid Driver
Rds On (Typ)
500mOhm
Mounting Type
Surface Mount
Package / Case
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Load
5V ~ 40V
Fault Protection
Current Limiting (Adjustable), Over Temperature, Short Circuit
Number of Outputs
8
Output Configuration
Low Side
Ratio - Input:Output
1:8
Operating Temperature
-40°C ~ 125°C (TA)
Current - Output (Max)
1.5A
Supplier Device Package
16-ETSSOP
| Attribute | Value |
|---|---|
| Mfr | 3PEAK |
| Interface | Serial |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Active |
| Switch Type | Relay, Solenoid Driver |
| Rds On (Typ) | 500mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Load | 5V ~ 40V |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit |
| Number of Outputs | 8 |
| Output Configuration | Low Side |
| Ratio - Input:Output | 1:8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Output (Max) | 1.5A |
| Supplier Device Package | 16-ETSSOP |
