3PEAK TPM27224-DF4R

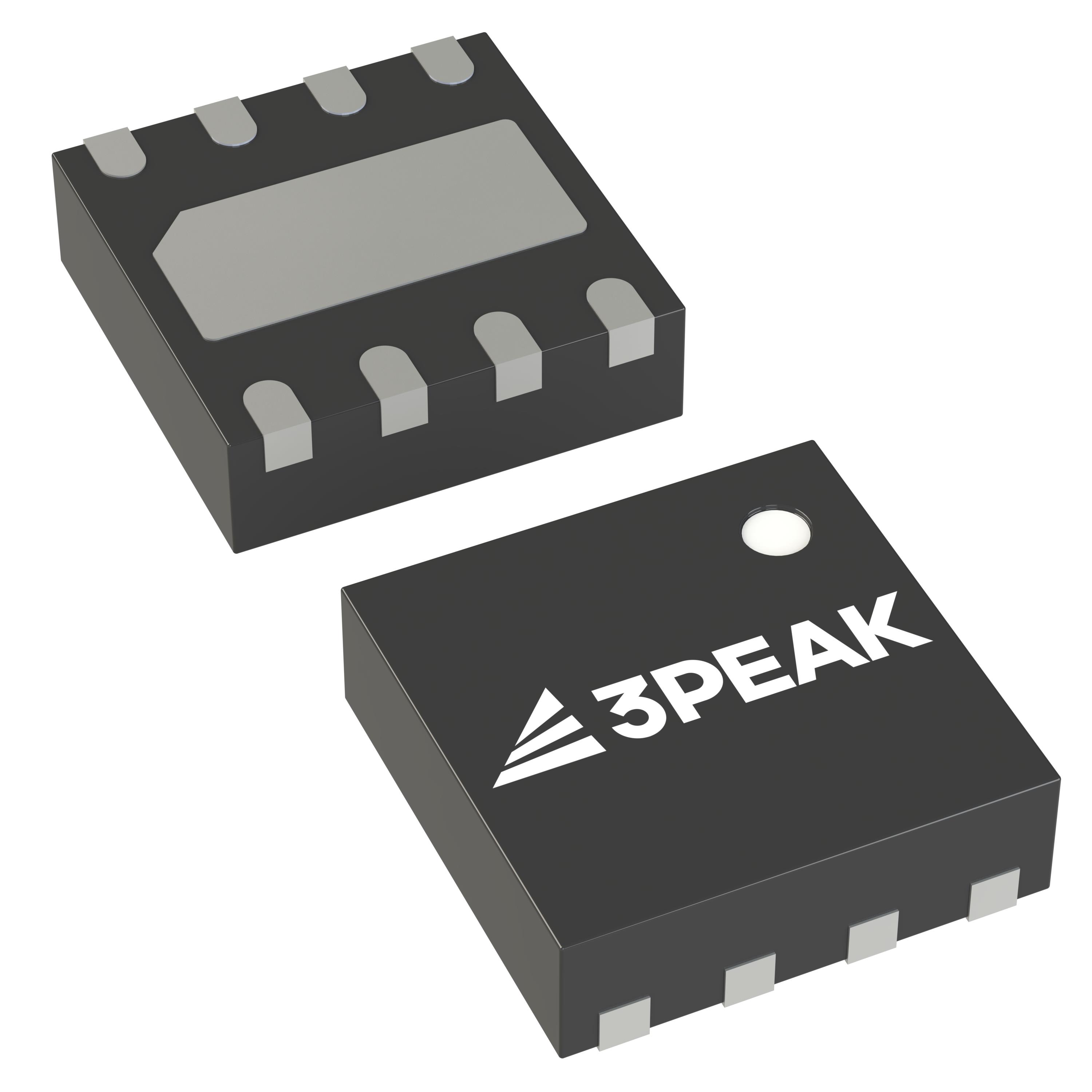

Image shown is a representation only
Manufacturer
Manufacturer No
TPM27224-DF4R
Package
8-VFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR LOW-SIDE 8DFN
Detailed Description
Low-Side Gate Driver IC Non-Inverting 8-DFN (2x2)
DataSheet
Gate Type
IGBT, MOSFET (N-Channel, P-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
3PEAK
Mounting Type
Surface Mount
Package / Case
8-VFDFN Exposed Pad
Voltage - Supply
4.5V ~ 23V
Number of Drivers
2
Driven Configuration
Low-Side
Operating Temperature
-40°C ~ 125°C (TA)
Rise / Fall Time (Typ)
9ns, 8ns
Supplier Device Package
8-DFN (2x2)
Current - Peak Output (Source, Sink)
2A, 2A
| Attribute | Value |
|---|---|
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | 3PEAK |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Voltage - Supply | 4.5V ~ 23V |
| Number of Drivers | 2 |
| Driven Configuration | Low-Side |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Rise / Fall Time (Typ) | 9ns, 8ns |
| Supplier Device Package | 8-DFN (2x2) |
| Current - Peak Output (Source, Sink) | 2A, 2A |
