Step1: Product

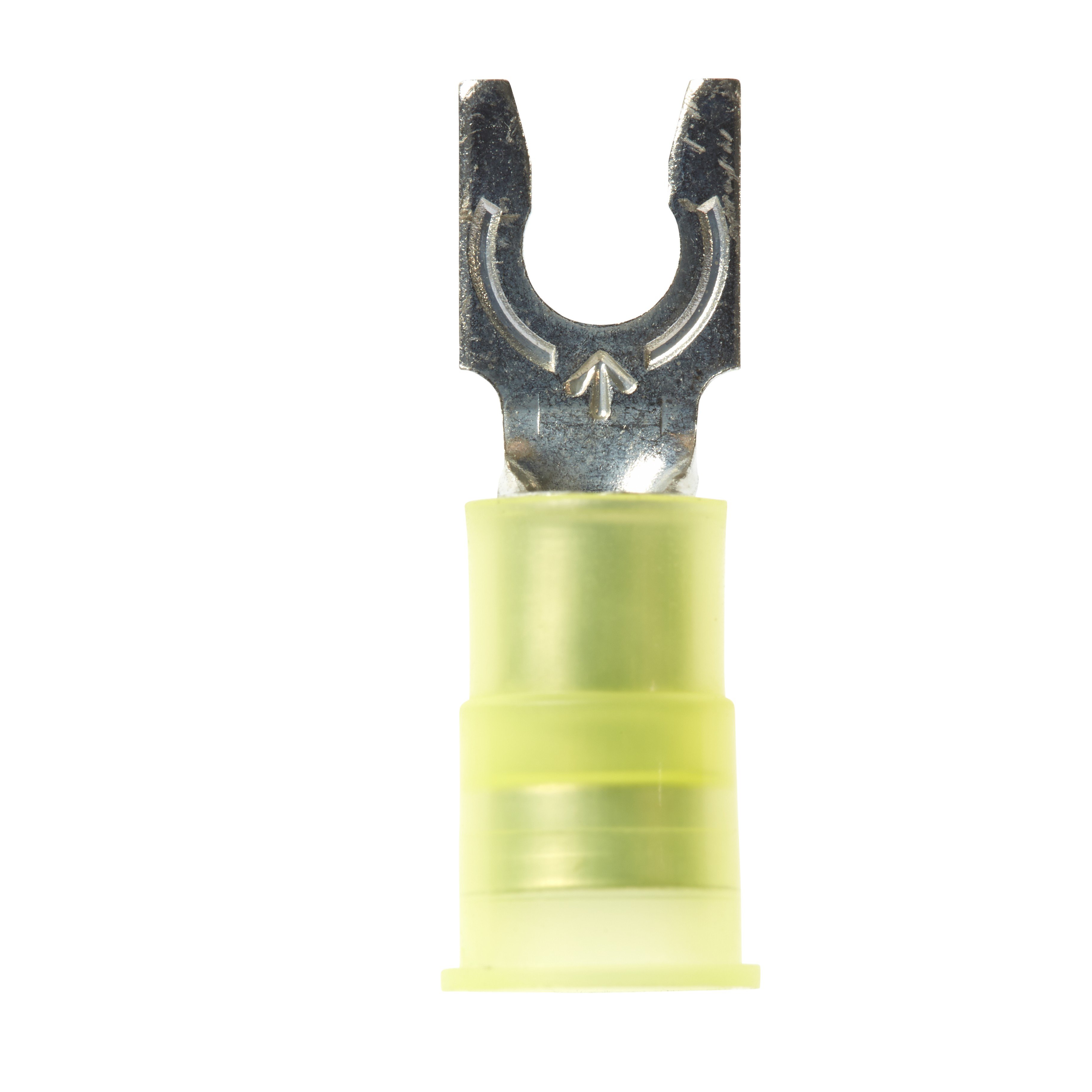

3M MNG10-8FK
Image shown is a representation only
Manufacturer
Manufacturer No
MNG10-8FK
Packaging
Bulk
Description
CONN SPADE TERM 10-12AWG #8 YEL
Detailed Description
Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
DataSheet
Color
Yellow
Series
Scotchlok™
Packaging
Bulk
Insulation
Insulated
Wire Gauge
10-12 AWG
Part Status
Active
Termination
Crimp
Manufacturer
3M
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
8 Stud
Terminal Type
Standard
Contact Finish
Tin
Contact Material
Copper, ETP
Length - Overall
1.030" (26.16mm)
Base Product Number
MNG10
Insulation Diameter
0.250" (6.35mm)
Width - Outer Edges
0.380" (9.65mm)
Length - Termination
0.550" (13.97mm)
Material - Insulation
Polyamide (PA), Nylon
Length - Ring Center to Termination
0.290" (7.37mm)
| Attribute | Value |
|---|---|
| Color | Yellow |
| Series | Scotchlok™ |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 10-12 AWG |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | 3M |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Standard |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Length - Overall | 1.030" (26.16mm) |
| Base Product Number | MNG10 |
| Insulation Diameter | 0.250" (6.35mm) |
| Width - Outer Edges | 0.380" (9.65mm) |
| Length - Termination | 0.550" (13.97mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Length - Ring Center to Termination | 0.290" (7.37mm) |
