Step1: Product

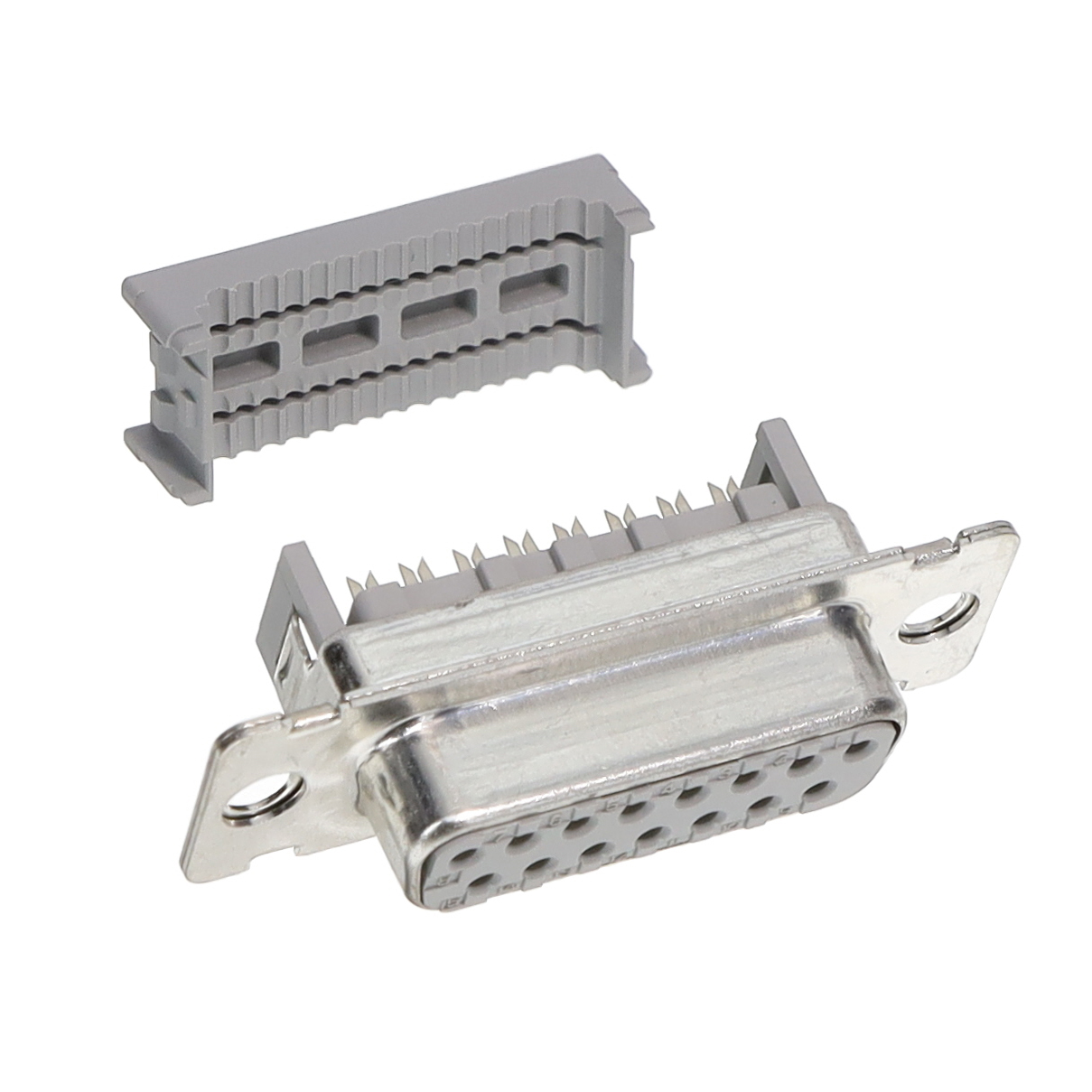

3M 8315-6000
Image shown is a representation only
Manufacturer
Manufacturer No
8315-6000
Quantity
3
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB RCPT 15POS PNL MT IDC
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
3M
Color
Gray
Series
8300
Features
Feed Through
Packaging
Tray
Wire Gauge
26-28 AWG
Part Status
Discontinued at DigiKey
Termination
IDC, Ribbon Cable
Contact Type
Signal
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
8315
Dielectric Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions
15
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | 3M |
| Color | Gray |
| Series | 8300 |
| Features | Feed Through |
| Packaging | Tray |
| Wire Gauge | 26-28 AWG |
| Part Status | Discontinued at DigiKey |
| Termination | IDC, Ribbon Cable |
| Contact Type | Signal |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | 8315 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 15 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
