Step1: Product

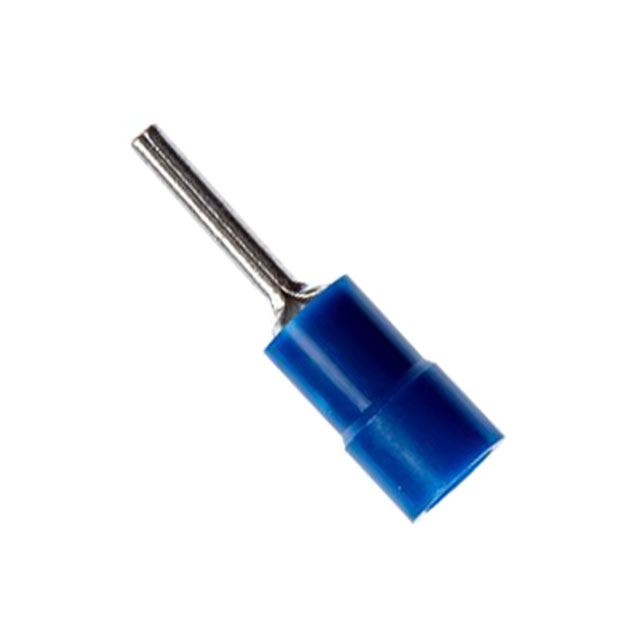

3M 82P-47-P-A
Image shown is a representation only
Manufacturer
Manufacturer No
82P-47-P-A
Packaging
Bulk
Description
CONN WIRE PIN 14-16AWG SCOTCHLOK
Detailed Description
Wire Pin Terminal Connector 14-16 AWG Scotchlok™ Crimp
DataSheet
Color
Blue
Series
Scotchlok™
Features
Butted Seam
Packaging
Bulk
Insulation
Insulated
Wire Gauge
14-16 AWG
Part Status
Active
Termination
Crimp
Length - Pin
0.470" (11.94mm)
Manufacturer
3M
Pin Diameter
Circular - 0.080" (2.03mm) Dia
Contact Finish
Tin
Contact Material
Copper, ETP
Length - Overall
0.920" (23.37mm)
Base Product Number
82P-47
Insulation Diameter
0.170" (4.32mm)
Diameter - Barrel ID
0.090" (2.29mm)
Length - Termination
0.250" (6.35mm)
Material - Insulation
Vinyl
| Attribute | Value |
|---|---|
| Color | Blue |
| Series | Scotchlok™ |
| Features | Butted Seam |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 14-16 AWG |
| Part Status | Active |
| Termination | Crimp |
| Length - Pin | 0.470" (11.94mm) |
| Manufacturer | 3M |
| Pin Diameter | Circular - 0.080" (2.03mm) Dia |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Length - Overall | 0.920" (23.37mm) |
| Base Product Number | 82P-47 |
| Insulation Diameter | 0.170" (4.32mm) |
| Diameter - Barrel ID | 0.090" (2.29mm) |
| Length - Termination | 0.250" (6.35mm) |
| Material - Insulation | Vinyl |
