Step1: Product

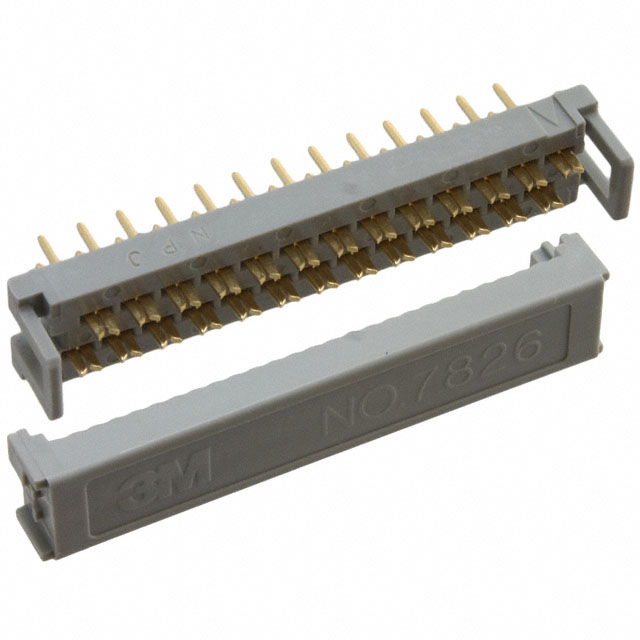

3M 7826-0006PR
Image shown is a representation only
Manufacturer
Manufacturer No
7826-0006PR
Packaging
Tray
Description
CONN DIP HDR IDC 26P VERT
Detailed Description
26 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole
Datasheet
Color
Gray
Series
78XX
Features
Feed Through
Packaging
Tray
Wire Gauge
26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid
Cable Pitch
0.050" (1.27mm)
Row Spacing
0.100" (2.54mm)
Manufacturer
3M
Mounting Type
Through Hole
Connector Type
Ribbon Cable, DIP Header
Contact Finish
Gold
Number of Rows
2
Board-Side Pitch
0.100" (2.54mm)
Cable Termination
IDC
Base Product Number
7826
Number of Positions
26
Contact Finish Thickness
Flash
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Color | Gray |
| Series | 78XX |
| Features | Feed Through |
| Packaging | Tray |
| Wire Gauge | 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid |
| Cable Pitch | 0.050" (1.27mm) |
| Row Spacing | 0.100" (2.54mm) |
| Manufacturer | 3M |
| Mounting Type | Through Hole |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Board-Side Pitch | 0.100" (2.54mm) |
| Cable Termination | IDC |
| Base Product Number | 7826 |
| Number of Positions | 26 |
| Contact Finish Thickness | Flash |
| Number of Positions Loaded | All |
