Step1: Product

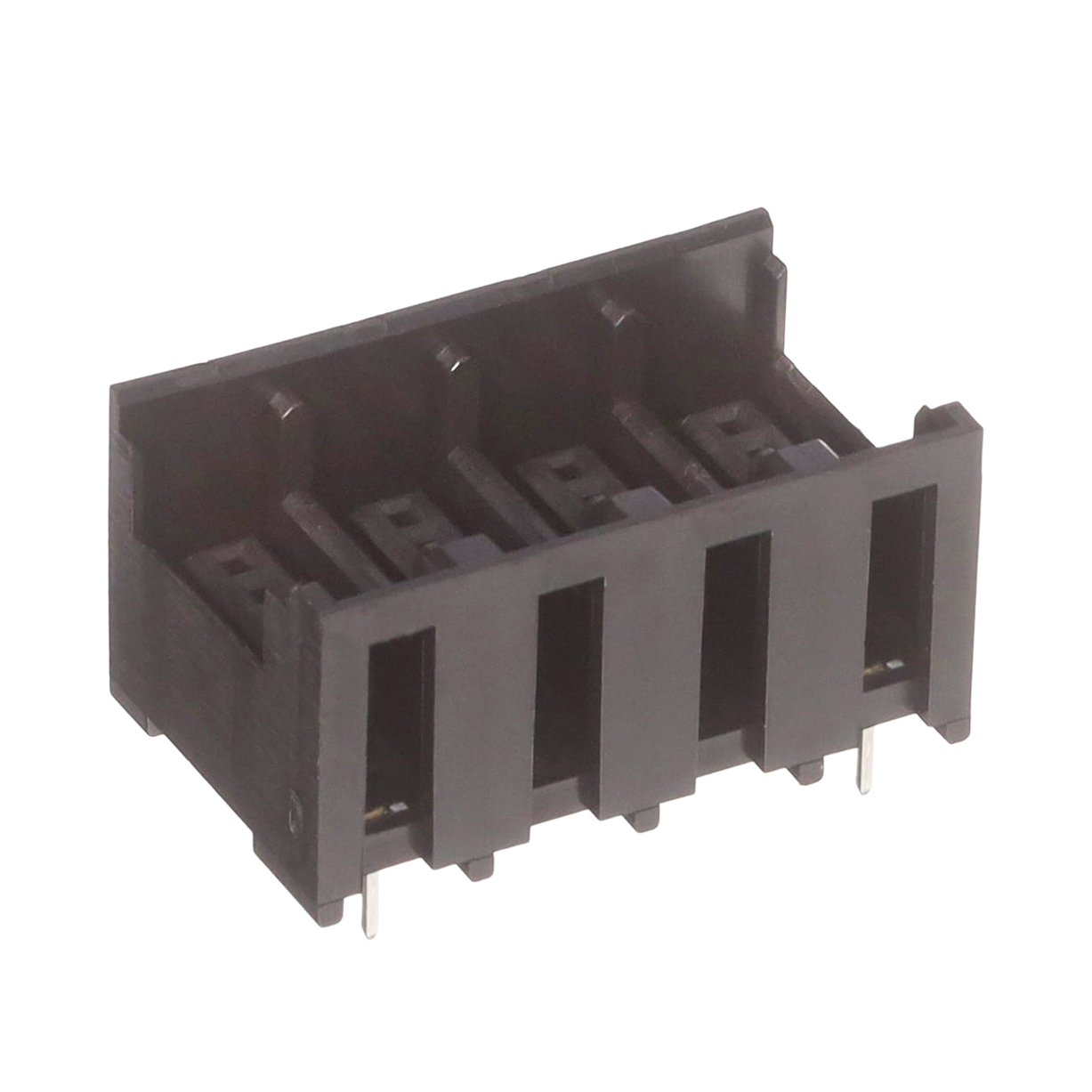

3M 37216-62A3-004 PL
Image shown is a representation only
Manufacturer
Manufacturer No
37216-62A3-004 PL
Packaging
Bulk
Description
3M MINI-CLAMP SOCKET STRAIGHT 37
Detailed Description
16 Position Receptacle Connector 0.256" (6.50mm) Through Hole Gold
DataSheet
Mfr
3M
Style
Board to Cable/Wire
Series
Mini-Clamp I, 372
Packaging
Bulk
Part Status
Active
Termination
Kinked Pin, Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
4
Pitch - Mating
0.256" (6.50mm)
Voltage Rating
32V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.512" (13.00mm)
Insulation Material
Polyamide (PA), Nylon
Number of Positions
16
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Current Rating (Amps)
3A
Operating Temperature
-20°C ~ 65°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | 3M |
| Style | Board to Cable/Wire |
| Series | Mini-Clamp I, 372 |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 4 |
| Pitch - Mating | 0.256" (6.50mm) |
| Voltage Rating | 32V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.512" (13.00mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 3A |
| Operating Temperature | -20°C ~ 65°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
