Step1: Product

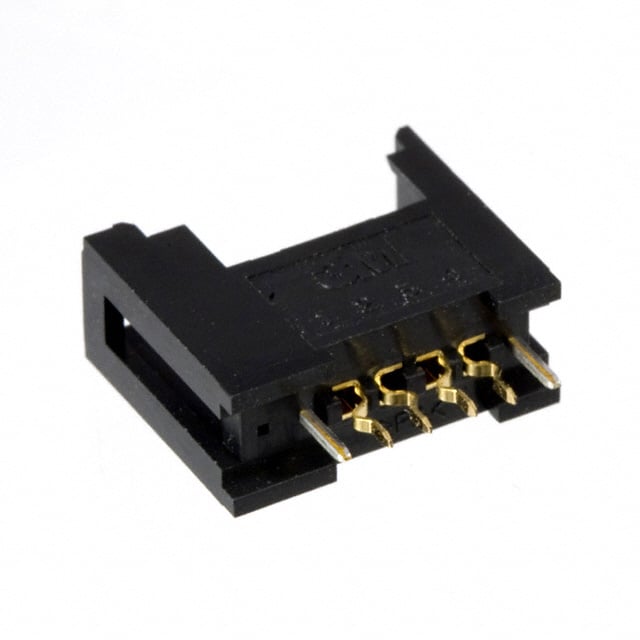

3M 37204-62B3-004PL
Image shown is a representation only
Manufacturer
Manufacturer No
37204-62B3-004PL
Packaging
Bulk
Description
CONN RCPT 4POS 0.079 GOLD PCB
Detailed Description
4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
DataSheet
Mfr
3M
Style
Board to Cable/Wire
Series
Mini-Clamp I, 372
Features
Board Guide
Packaging
Bulk
Part Status
Active
Termination
Kinked Pin, Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
32V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.512" (13.00mm)
Base Product Number
37204
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4
Contact Finish - Post
Gold
Contact Length - Post
0.102" (2.60mm)
Current Rating (Amps)
3A
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | 3M |
| Style | Board to Cable/Wire |
| Series | Mini-Clamp I, 372 |
| Features | Board Guide |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 32V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.512" (13.00mm) |
| Base Product Number | 37204 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.102" (2.60mm) |
| Current Rating (Amps) | 3A |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
