Step1: Product

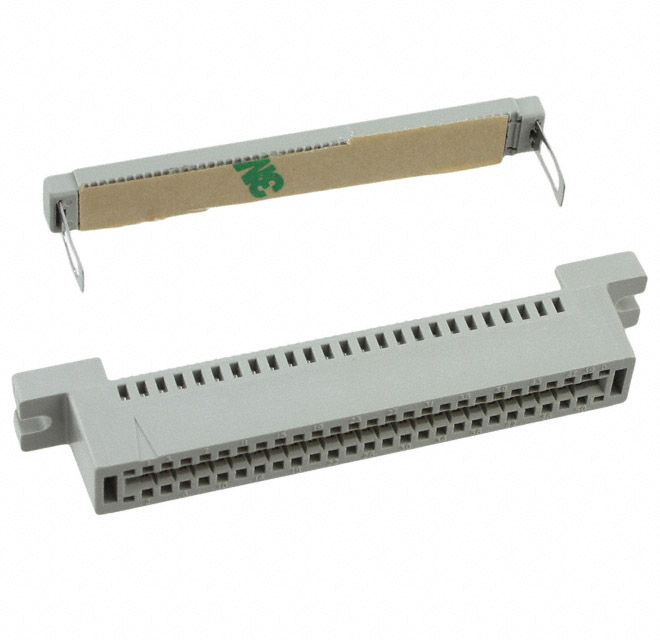

3M 3415-0002
Image shown is a representation only
Manufacturer
Manufacturer No
3415-0002
Packaging
Bulk
Description
CONN EDGE DUAL FMALE 50POS 0.100
Detailed Description
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Gray
DataSheet
Color
Gray
Pitch
0.100" (2.54mm)
Gender
Female
Series
3000
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Bulk
Part Status
Obsolete
Termination
IDC
Manufacturer
3M
Mounting Type
Panel Mount
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
3415
Number of Positions
50
Material - Insulation
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
25
| Attribute | Value |
|---|---|
| Color | Gray |
| Pitch | 0.100" (2.54mm) |
| Gender | Female |
| Series | 3000 |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Part Status | Obsolete |
| Termination | IDC |
| Manufacturer | 3M |
| Mounting Type | Panel Mount |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Contact Finish | Gold |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | 3415 |
| Number of Positions | 50 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 25 |
