Step1: Product

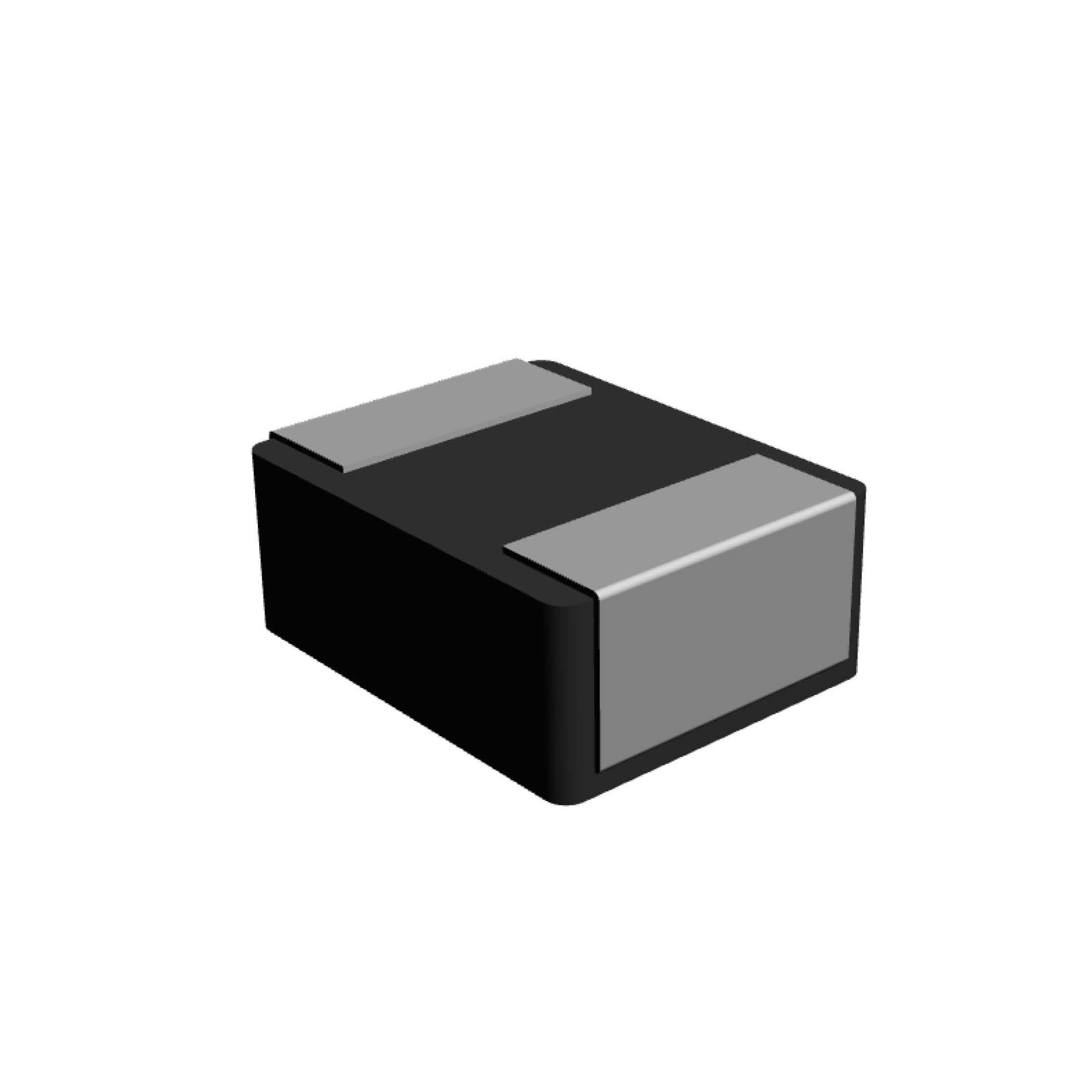

3L Coils LHP201610P-4R7M
Image shown is a representation only
Manufacturer
Manufacturer No
LHP201610P-4R7M
Package
0806 (2016 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 4.7UH 0.6A 342 MOHM
Detailed Description
4.7 µH Shielded Molded Inductor 0.6 A 342mOhm Max 0806 (2016 Metric) Molded Inductors, Molding Power Choke
DataSheet
Mfr
3L Coils
Type
Molded
Series
LHP201610P
Features
Molded Inductors, Molding Power Choke
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Inductance
4.7 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0806 (2016 Metric)
Material - Core
Alloy Powder
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
DC Resistance (DCR)
342mOhm Max
Current Rating (Amps)
0.6 A
Height - Seated (Max)
0.039" (1.00mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
0806 (2016 Metric)
Current - Saturation (Isat)
1.2A
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | 3L Coils |
| Type | Molded |
| Series | LHP201610P |
| Features | Molded Inductors, Molding Power Choke |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Material - Core | Alloy Powder |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| DC Resistance (DCR) | 342mOhm Max |
| Current Rating (Amps) | 0.6 A |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 0806 (2016 Metric) |
| Current - Saturation (Isat) | 1.2A |
| Inductance Frequency - Test | 1 MHz |
